Overview

Basic Info.

Model NO.	HX-700FQ
Application	Machinery & Hardware, Commodity
Type	Roll Slitter
Work Method	Round Knife Cutting
Structure	Cutting Part
Packaging	Film
Classification	Ultrasonic Label Cutting Machine
Applicable Process	Final Inspection
Suitable Substrates	Film Cutting
Packaging Material	Wood
Model	Hx-700fq
Main Engineer Power	4kw
Speed	130m/Min
Size	1900X1850X1350mm
Weight	2000kg
Max. Unwinding Diameter	650mm
Max. Rewinding Diameter	600mm
Precision	0.1mm
Power	380V 50Hz
Suitable Material Thickness	20um-150um
Transport Package	Wooden Case
Specification	700mm
Trademark	Hexin
Origin	Kunshan, China
HS Code	84411000
Production Capacity	10PCS/Mon

Packaging & Delivery

Package Size	220.00cm * 200.00cm * 180.00cm
Package Gross Weight	2200.000kg

Product Description

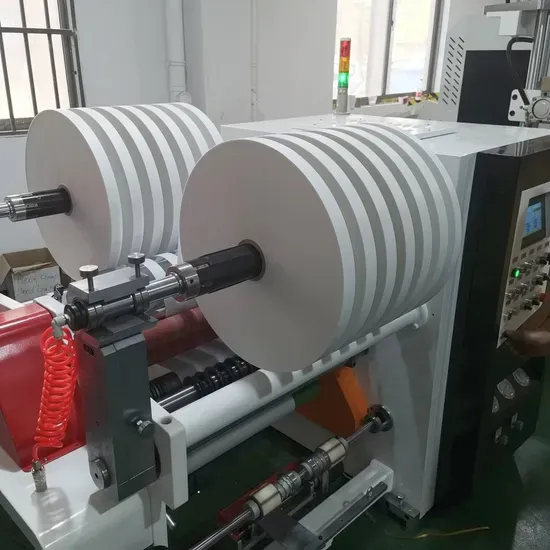

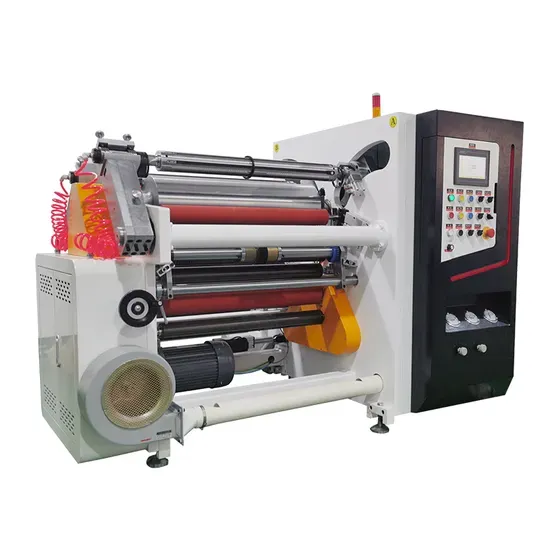

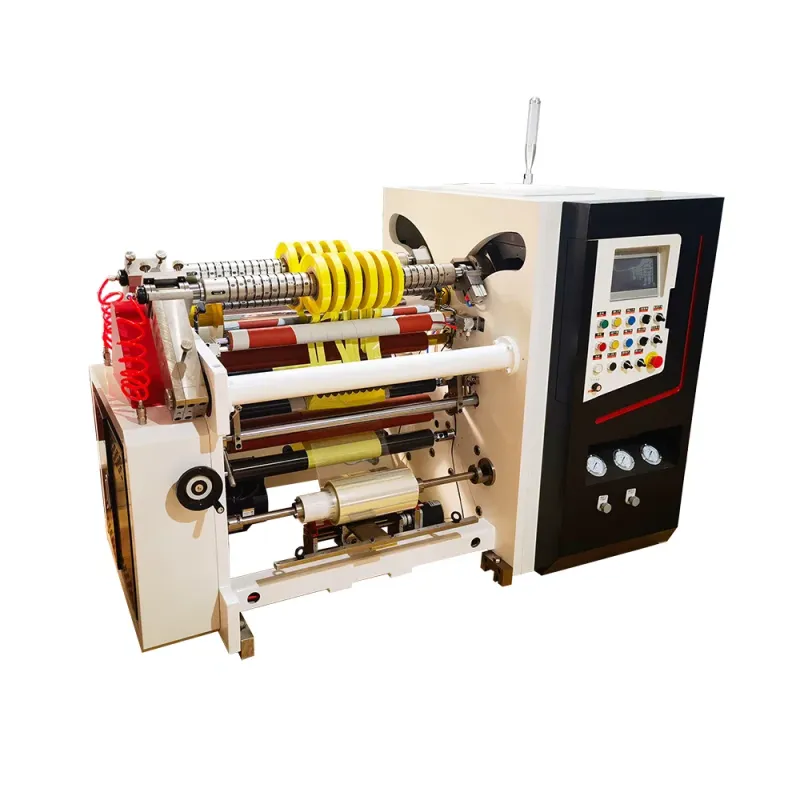

3mm 5mm Paper Straw Roll Surface Rewinding Automatic Slitting Machine

Features:

It is suitable for slitting of 3M, Mylar, aluminum foil, copper foil, EVA, protective film, BOPP, PET, masking paper, foam tape, double-sided tape, kraft paper tape, cloth base and other materials.

Multifunctional slitting machine

Factory direct support customization

Six core advantages

Direct deal
Time guarantee
Experience guarantee
Material guarantee
Price guarantee
After sale guarantee
Science and technology Manufacturing quality assurance

We strive to develop machinery Only to provide you with high quality products

Feature

After-service:

Warranty for machine: 12months
After-service: A reply within 24 hours
A free training in our factory available before delivering machines.

Configuration

SN	Name	Description & specification	Qty	Brand
1	Main body	Made of 35mm steel plate with square tube support	1 set
2	Operation panel	Angle adjustable panel	1 set
3	Rewinding shaft	3"inch diameter, air shaft	2 pieces	XIANSHENG, Taiwan
4	Unwinding shaft	3"inch diameter, air shaft	1 piece
5	Feed roller	PU	1 set

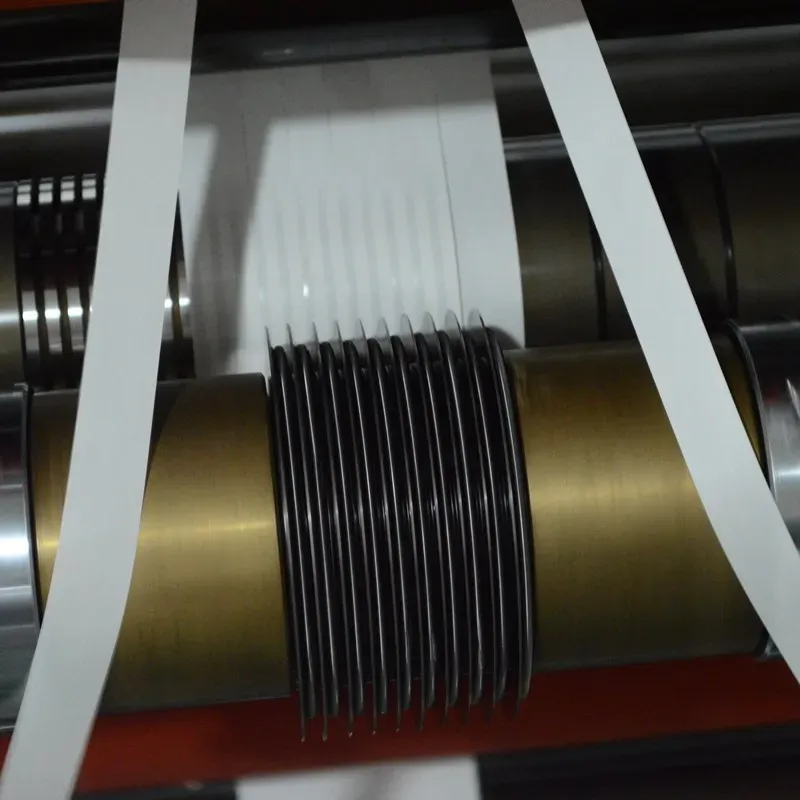

6	Upper circular blade	φ90mmXφ48X5
7	Lower circular blade	Φ70mmXΦ45X(5X3)
8	EPC		1 set

Electrical configuration

SN	Name	Description & specification	Qty	Brand
1	Operation panel	7"touch screen	1 set	MCGS
2	Control system	PLC programmable controller + analog module	1 set	MITSUBISHI, Japan
3	Frequency converter	4KW	1 set	SCHNAIDER, France
4	low-voltage apparatus	Start and stop buttons, contactors, relays, etc.	1 set	SCHNAIDER, France
5	EPC		1 set
6	Magnetic powder clutch		1 set
7	Pneumatic component	Cylinders, solenoid valves, gas pipe connectors, etc.	1 set	Airtac, Taiwan
8	Motor	3.7KW	1 set	Liming, Taiwan
10	Optoelectronic switch	E3Z-T61-L+E3Z-T61-D	2 sets	OMRON, Japan
11	Switch	PMT-24V350W2BM	1 piece	DELTA, Taiwan

Technical parameters

Effective width	650mm
Slitting width	3mm~650mm
Maximum unwinding diameter	800mm
Rewinding core	76mm
Voltage	380V 50HZ
Air pressure	0.4-0.7MPa
Overall dimension	190018501350mm
speed	130m/min
