Product ID: 68580700
Jumbo Paper Roll Slitting Rewinding Machine Cost
Contact Now
Description
Basic Info.
- Model NO. Jumbo paper roll
- Work Method Flat Knife or Round Knife
- Structure Host
- Packaging Film /Paper
- Classification Slitter Rewinder
- Applicable Process Process Materials
- Suitable Substrates Film Cutting & Adhesive Paper Cutting
- Packaging Material Film & Paper
- Main Motor Siemens, Germany
- Frequency Inverter Yaskawa, Japan
- PLC Siemens
- EPC Bianfu
- Touch Screen Weinview, Taiwan
- Bearing NSK, Japan
- Rewinder Motor 2 PCS
- Rewinder Motor Brand Siemens, Germany
- Rewind Frequency Inverter Yaskawa, Japan
- Proportional Valve SMC, Japan
- Magnetic Powder Brake Ningbxia
- Min. Slitting Width 30 mm
- Max. Unwind Diameter 800mm , 1000mm , 1200mm
- Max. Rewind Diameter 600mm
- Max. Slitting Speed 300 M/Min , 400 M/Min
- Transport Package Wooden Pallet Package
- Specification 2200 x 3600 x 1700 mm
- Trademark QIANGDA
- Origin Wenzhou, China
- HS Code 84778000
- Production Capacity 200 Sets/ Year
Product Description
FHQR-1300 model Automatic Adhesive Paper, BOPP, CPP, PET, PE Slitting Machine Slitter
Application Area
This machine is used for cutting different kinds of roll materials, such as BOPP, PET, CPP and PVC, Paper, Adhesive Paper other similar material etc.
Feature
- 1. Electrical control system adopts PLC and touch screen for control. And according to different requirements of products to set and display the working parameter.
- 2. Rewinding adopts vector frequency inverters, roll diameter calculated by PLC to realize automatic tension control.
- 3. Loading and unloading using shaft-less pneumatic cone top type. It is easy for loading, unloading and with high efficiency, has web guide system.
- 4. Rewinding shaft is double slip air shaft, uses the straight knife and rotary knives for slitting, regularity disc surface, air exhausting device for the waste.
- 5. The system has meter counting, winding diameter operation, automatic stop by setting length you need first.
Main Technical Parameters
- Unwind width 400 - 1300mm
- Slitting material BOPP Film 12-220um, PE, PVC Film 40um - 250um.
- Maximum unwind diameter φ800 mm
- Maximum rewind diameter φ600 mm
- Paper Core Diameter 76mm
- Maximum machine speed 300 M/min
- Min. Slitting width 30 mm
- Range of slitting width 30 - 1300mm
- Deviation correction precision ≤ 0.4mm
- Tension setting range 0 - 100 Kg
- Draw roller motor 3 kw
- Total power 9 kw
- Machine size 2200 x 2700 x 1700mm
- Machine mass 3000kg
- Machine colour TBA

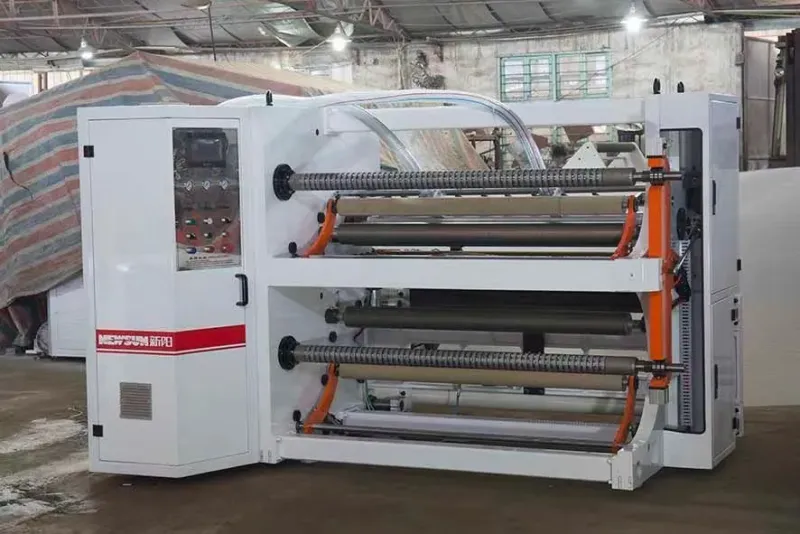

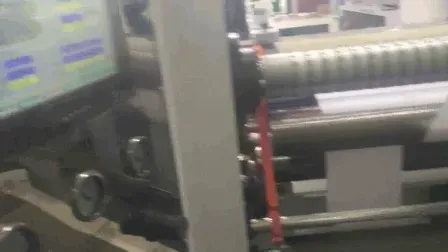

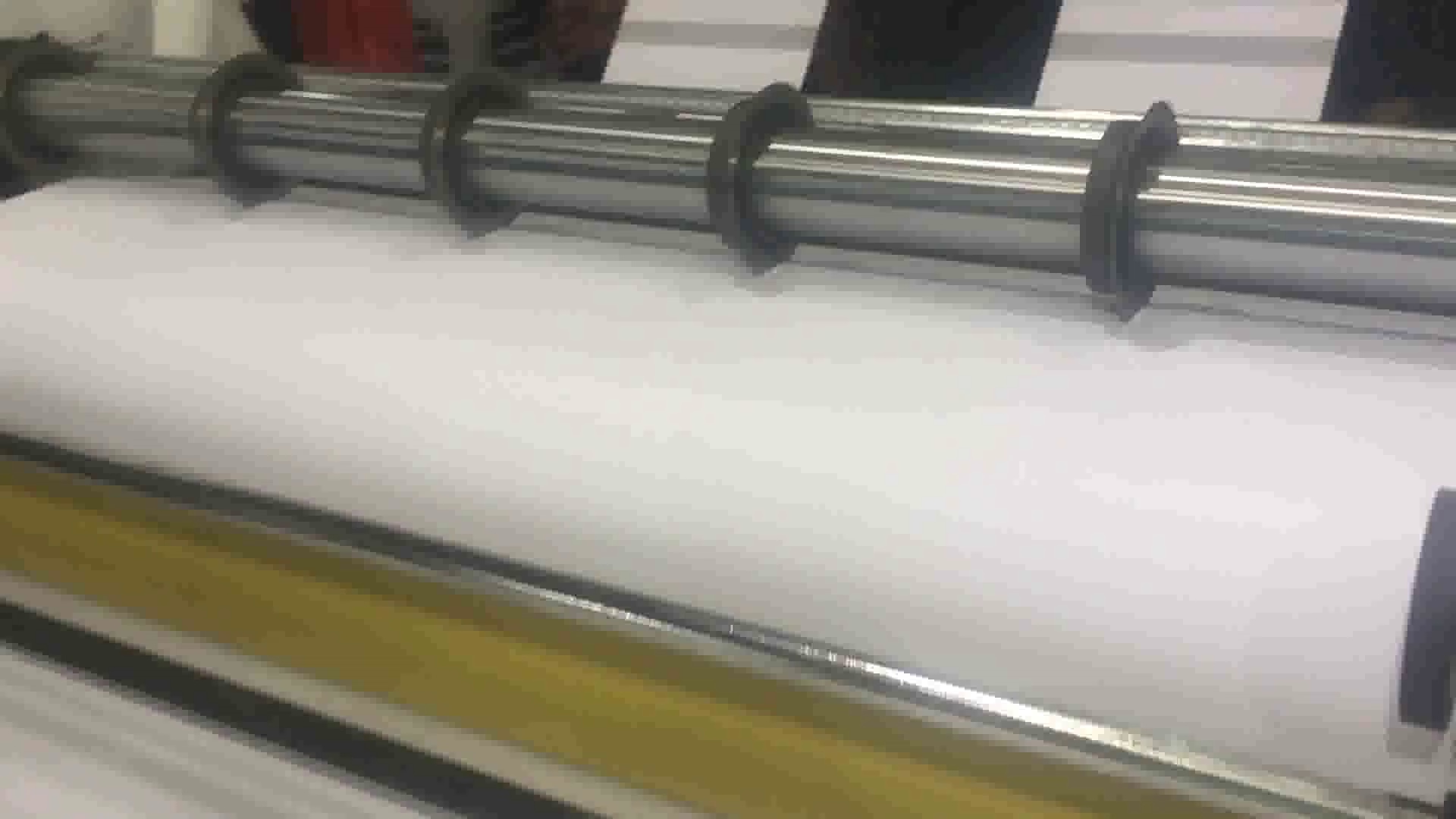

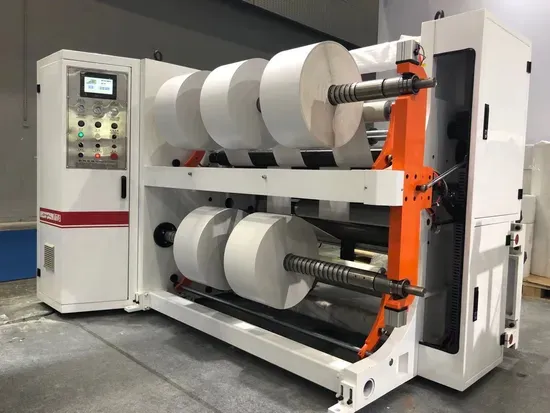

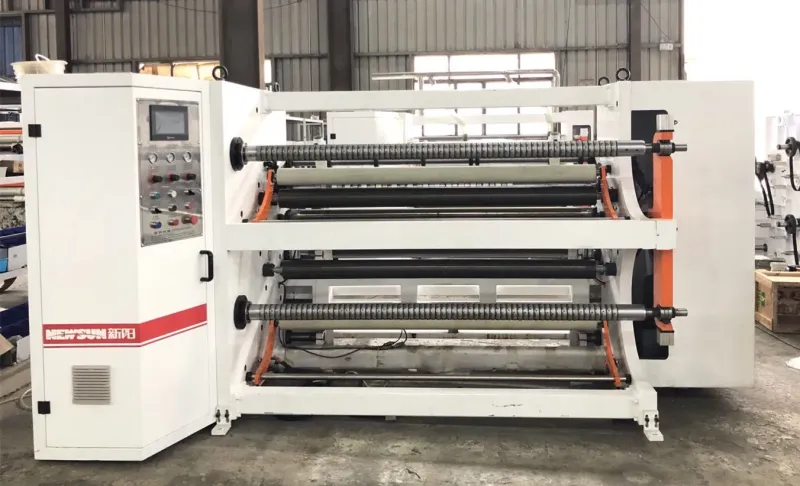

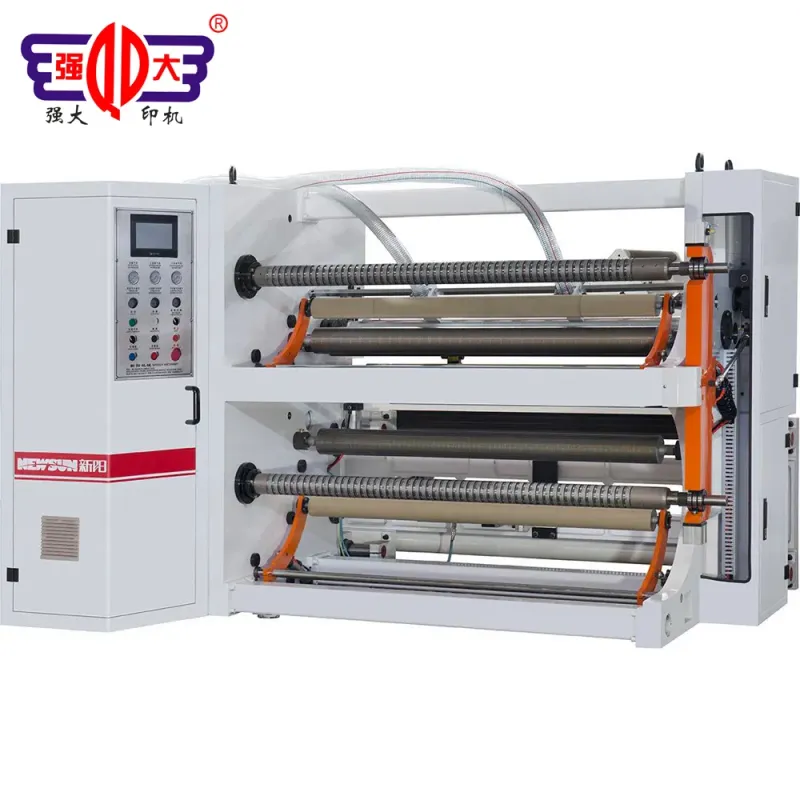

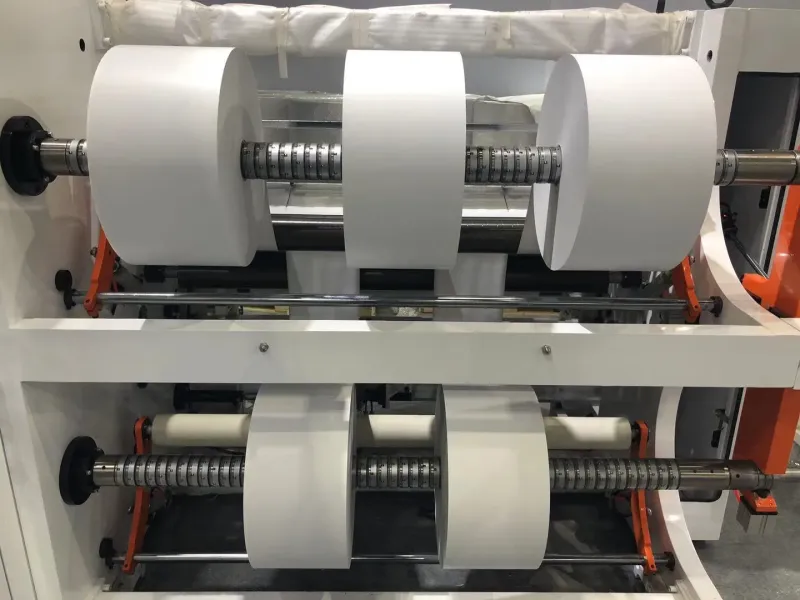

Machine photos
