Basic Info.

Model NO.	ZC-1300
Work Method	Round Knife Cutting
Structure	Frame Part
Packaging	Film
Classification	Film Slitting and Rewinding
Applicable Process	Plastic Film, Paper, Alu.
Suitable Substrates	Plastic Film, Paper, Alu.
Packaging Material	Plastic
Advantage	High Speed 400m/Min
Transport Package	Wooden Case
Specification	MODEL 1300
Trademark	ZHECHUANG
Origin	China
HS Code	84411000
Production Capacity	100 Sets/Year

Product Description

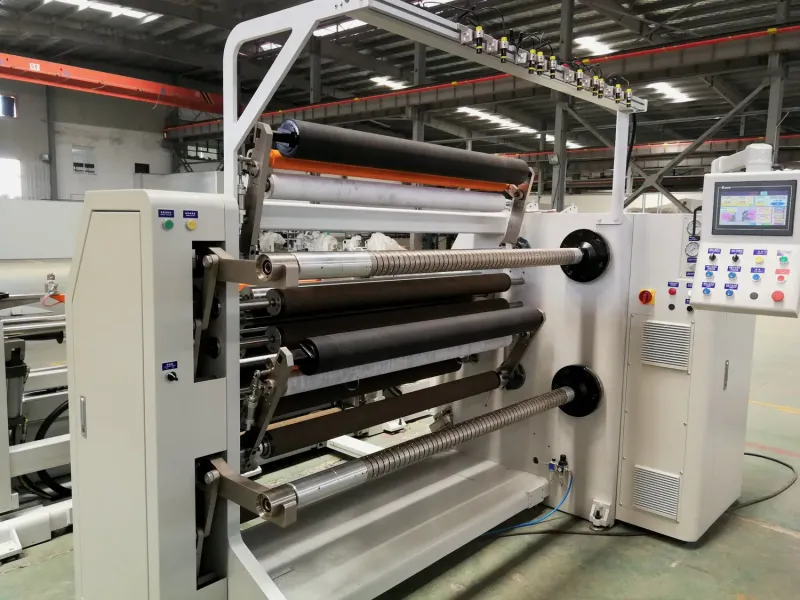

ZC-1300 SLITTING MACHINE (400m/min)

Electronic Protective Film High Speed Slitting Machine with Shaftless Rewinding Cutting Machine

Three servo motor

Machine Information:

HSI series slitter is ideal for the serious slitting all types of flexible packaging materials as well as label stock & paper. The slitter comes standard with razor cutters and groove roller configuration. A shear cutter system is offered as option for paper and other pressure sensitive materials. The machine uses three AC Vector Drives and has automatic tension on unwind and rewind controlled through easy-to-use PLC & MMI touch screen. The machine features a vacuum roller that keeps the material stable during operation at high speeds 400m/min. Friction rings are used on rewind shafts to ensure the production of quality slit rolls when the film thickness varies.

Machine Parameter:

Main Technical Parameter	ZC-1300
Unwind width	300 ~ 1300 mm
MAX Width of material	1300 mm
Unwind max. material diameter	1000mm
Unwind cylinder paper	3" (76mm) + 6" (152mm)
Rewind width	SLIT-HSI-1300: 50mm Above (Depending on the number of the cutter and material properties, the Cutting width.)
Rewind diameter	600mm (standard)
Rewind cylinder paper core	3" (76mm)
Max. Machine speed	400 m/min
Suitable material	Various types of flexible packaging materials and printing mat
Voltage requirement	380V 50HZ
Compressed air	0.5MPa ≤ P ≤ 0.7MPa
Rated power	15.3KW
Machine size	3510(L)3020(W)2000(H)mm
Machine weight	5T
Power consumption per hour	Estimated 4.8kwh, depending on the operating speed, the actual power consumption is different
