Mining Material Handling Conveyor System
Description
Overview
Product Description

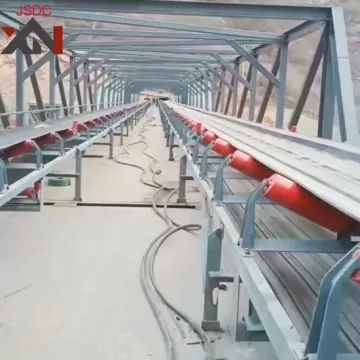

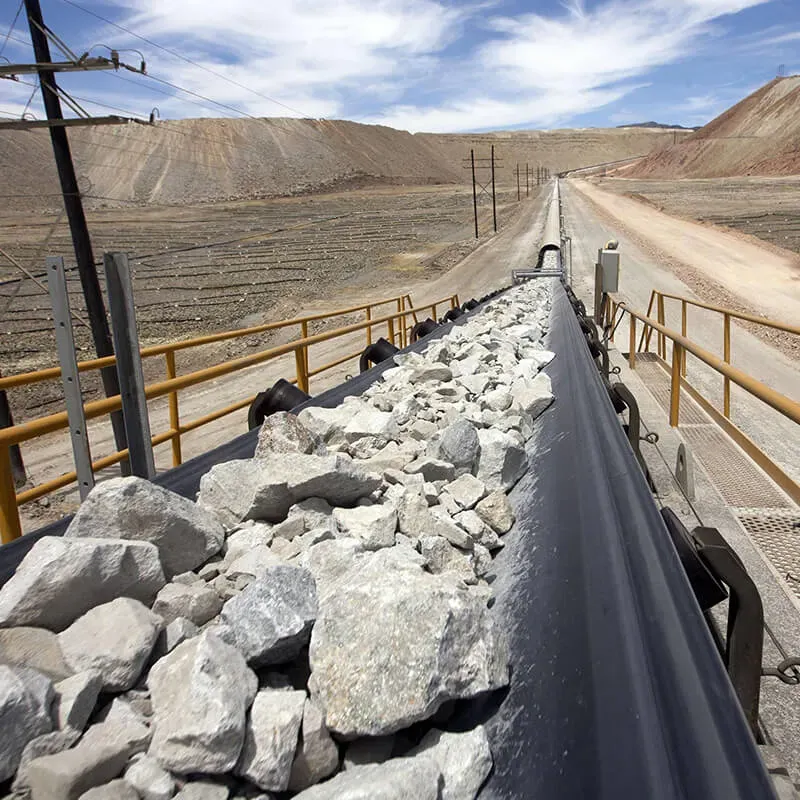

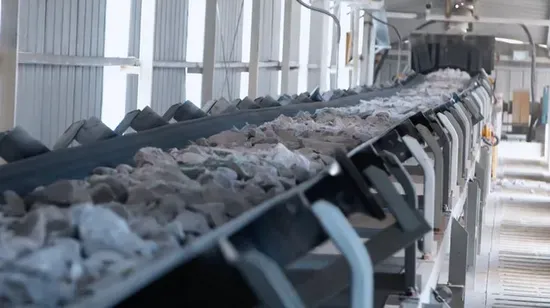

Belt conveyors are one of the most commonly used equipment for handling bulk materials, it can be used for conveying materials horizontally or inclinedly. The structure of the belt conveyor is relatively simple, it is mainly composed of conveyor belt, pulley, idlers, frame, tension devices, driving unit, protection switches and other components etc. The main driving force is generated by the mechanical friction between the driving pulley and belt. Belt conveyor is widely used in mining, metallurgy, port, cement, grain, chemical and other industries.
General Technical Parameter:
| Belt width (mm) | Belt speed (m/s) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 0.8 | 1.0 | 1.3 | 1.6 | 2.0 | 2.5 | 3.2 | 4.0 | 5.0 | 6.5 |
| 500 | 69 | 87 | 108 | 139 | 174 | 217 | |||
| 650 | 127 | 159 | 198 | 254 | 318 | 397 | |||
| 800 | 198 | 248 | 310 | 397 | 496 | 620 | 781 | ||
| 1000 | 324 | 405 | 507 | 649 | 811 | 1014 | 1278 | 1622 | |
| 1200 | 593 | 742 | 951 | 1188 | 1486 | 1872 | 2377 | 2971 | |
| 1400 | 825 | 1032 | 1321 | 1652 | 2065 | 2602 | 3304 | 4130 | |
| 1600 | 2186 | 2733 | 3444 | 4373 | 5466 | ||||
| 1800 | 2795 | 3494 | 4403 | 5591 | 6989 | 9083 | |||
| 2000 | 3470 | 4338 | 5466 | 6941 | 8676 | 11277 | |||
| 2200 | 6843 | 8690 | 10863 | 14120 | |||||
| 2400 | 8289 | 10526 | 13158 | 17104 |
Remark: Capacity is calculated by material horizontal conveying, 20° Operating stacking Angle, 35° roller groove Angle.
Product Details:
Feature:
- Belt conveyor is low noise, thus, it suits for occasions where the working environment requires quiet.
- Belt conveyors can be loaded and unloaded at any point according to the production process.
- According to the different materials, different belts are available.
- All kinds of protection switches give early warning of possible accidents.
- Conveyor idlers are manufactured by our advanced production line, available of types of idlers to ensure belt conveyor running smoothly.
- Reliable quality, reasonable design, long service life.
Why Choose Us:
EXCT has advanced testing equipment and professional quality inspection engineers to monitor the whole process of production and ensure that each process of products meets the quality requirements. Excellent tooling, skilled technical workers, and more than 30 years of production experience ensuring quality. EXCT's after-sales service team can quickly respond to the needs of end-users. EXCT has a complete product and spare parts management system, and an adequate spare parts inventory.
Manufacturing Facilities:
As idlers and pulleys are one of the most important parts of belt conveyors, EXCT has introduced advanced idlers and pulleys production lines which produce high quality idlers and pulleys to ensure the long term stable operation of belt conveyors.
Roller Production Line:
Pulley Production Line:
Strict Quality Control:
EXCT not only has professional quality inspection personnel but also advanced professional inspection equipment and laboratories. Relying on the scientific research strength of well-known universities in China, EXCT has established a domestic advanced drum laboratory, mechanical performance laboratory and drum static balance test bench, etc., which guarantees the quality of products.
About Company:
Henan Excellent machinery Co., LTD is a professional bulk material handling equipment manufacturer providing comprehensive solutions to customers worldwide. Our Factory is located in Xinxiang City (China's city) and covers an area of about 39,600 square meters. It owns 15,800 square meters of standard heavy-duty industrial plants and more than 140 sets of advanced machining processing, riveting and assembling equipment. EXCT's main products include Mineral Sizers, Vibrating Screen, Belt Conveyor, Bucket Elevator, Apron Feeder, Trough Chain Conveyor, Screw Conveyor, Conveyor Idler and etc. Our product is widely used in mine, port, coal, electric power, metallurgy, building materials, chemicals, food and other fields. EXCT has a comprehensive international trade service system from marketing promotion to negotiation and cooperation, from domestic one-stop consultation services to localized services in dozens of countries and regions abroad. By the end of 2020, EXCT has delivered reliable products and services to over 2000 customers in 60 countries and regions.
Qualification:
Complete After-sales Service:
- Free repair and replacement: Within the warranty period, if the equipment malfunctions in the correct use, we will guarantee free repair and replacement of spare parts.
- Supply spare parts: During the normal service life of the equipment, we will provide spare parts with reliable quality and reasonable price.
- Remote diagnosis and on-site service: When the equipment malfunctions, our after-sales service engineers can diagnose the equipment by video and guide the on-site operators to troubleshoot the equipment. If the equipment fault still cannot be removed, We will arrange professional after-sales service engineers to remove the fault on site.
Oversea:
In the situation of global economic integration and large and fierce competition international market, Henan Excellent Machinery Co., Ltd aims at creating a global strategy, encourages technological and management innovation, improves overseas business model and cultivates a team of highly qualified and inter-disciplinary talents to adapt international market changes and overseas business development.
