Stainless Steel 316 Pressure Leaf Filter for Energy Saving Dreg Edible Oils Treatment
Description
Basic Info.
- Model NO. ADLS-90
- Pressure Hydraulic Pressure
- Type Plate Filter Press
- Product Name Leaf Filter
- Discharging Type Automatic Filter
- Model No. Adls-90
- Filter Area 90m²
- Material SS304/316/Carbon Steel
- Application Solid-Liquid Filtration Separation
- Feature Excellent Filtration Performance
- Kind Vertical
- Condition New
- After-Sale Service Engineers Available to Service Machinery Overseas
- Layers of Filter Screens 5 Layers
- Customized Type Aviliable
- Color Green/Blue/Silver/Customized
- Transport Package Export Special Wooden Box
- Specification 3300mm*2200mm*4650mm
- Trademark Aida
- Origin China-Henan
- HS Code 84212990
- Production Capacity 300sets/Month
Product Description

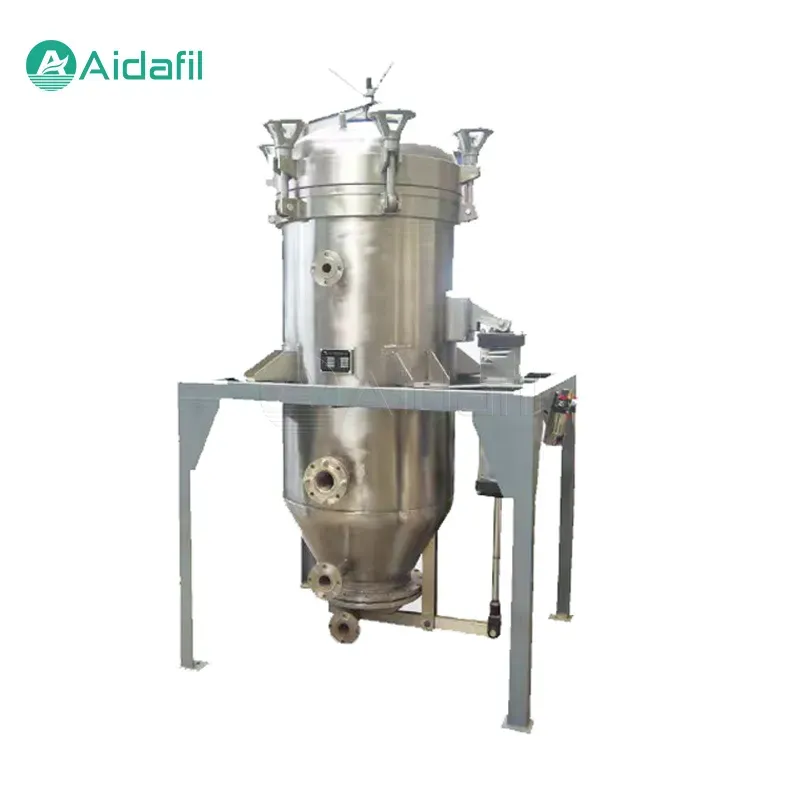

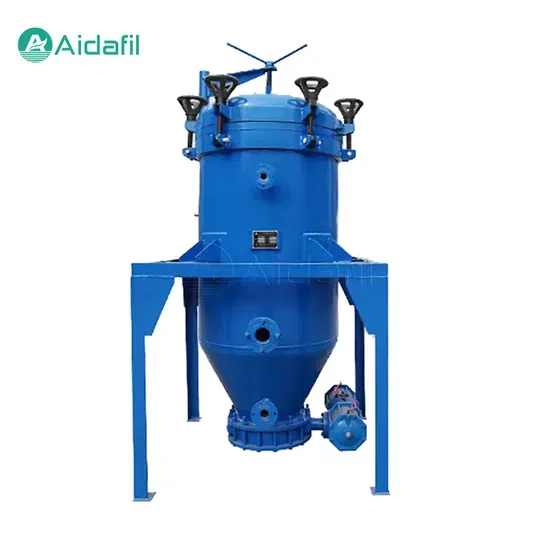

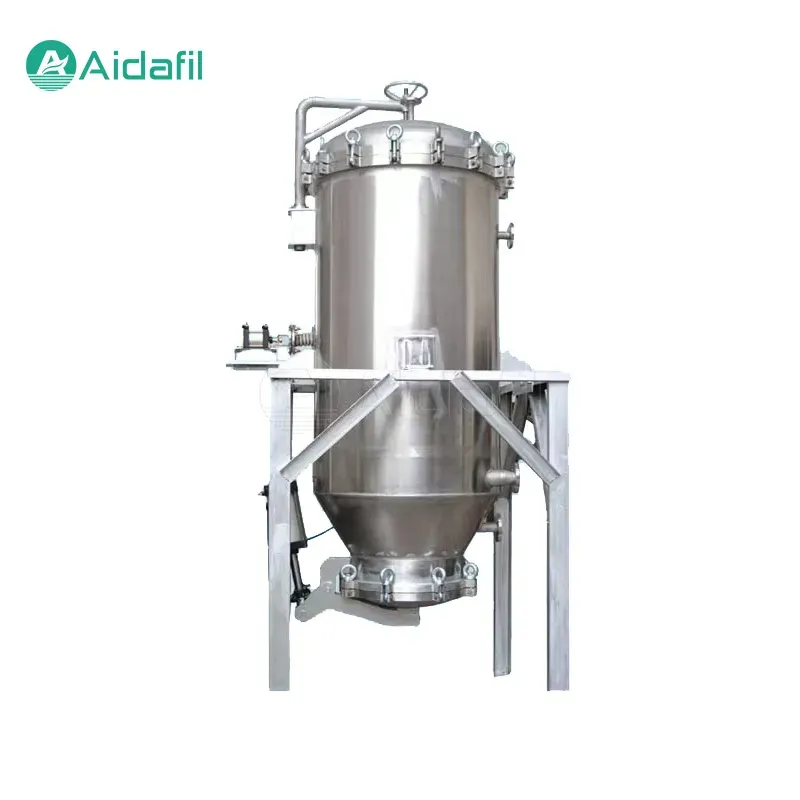

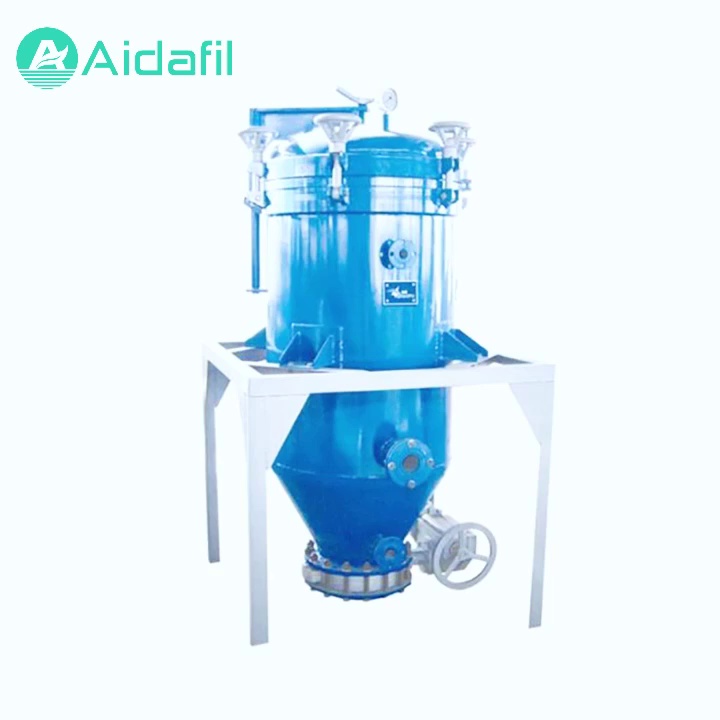

Leaf filter
Filter press Description: high efficiency plate filter press series is an efficient, energy-saving, precise clarification and filtration equipment closed operation, which is widely used in chemical, petroleum, bio-diesel, oil, paint, food, pharmaceutical and other industries. The unique design of the product structure, small size, high fltration efficiency, transparency and fineness filtrate, no material loss, do not consume paper, cloth or paper core, while consuming only a small amount of aid, and therefore very low filtration costs, equipment operation, maintenance, easy to clean.
| Model | Filtering area(m²) | Cylinder diameter(mm) | Inlet | Outlet | Overflow port | Slag outlet(mm) | Height(mm) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|
| ADLS-4 | 4 | 550 | DN50 | DN80 | DN40 | 300 | 2010 | 600 |
| ADLS-8 | 8 | 700 | DN50 | DN80 | DN40 | 400 | 2425 | 800 |
| ADLS-10 | 10 | 800 | DN50 | DN80 | DN40 | 400 | 2630 | 900 |
| ADLS-15 | 15 | 900 | DN50 | DN80 | DN40 | 400 | 2650 | 1100 |
| ADLS-20 | 20 | 1100 | DN50 | DN80 | DN40 | 400 | 3000 | 1500 |
| ADLS-30 | 30 | 1200 | DN50 | DN80 | DN40 | 500 | 3050 | 1750 |
| ADLS-40 | 40 | 1300 | DN65 | DN80 | DN50 | 500 | 3280 | 2100 |
| ADLS-50 | 50 | 1400 | DN65 | DN80 | DN50 | 600 | 3450 | 3000 |
| ADLS-60 | 60 | 1500 | DN65 | DN80 | DN50 | 600 | 3630 | 3100 |
| ADLS-80 | 80 | 1600 | DN65 | DN80 | DN50 | 700 | 3860 | 3600 |
- 1.Core filtration components: It used special stainless steel composite woven screen, which is corrosion resistant, easy to clean, long service life, can be used continuously for 3-5 years with low maintenance cost.
- 2.Product loss: pipeline connection: fully closed filtration, product free from pollution, volatilization and loss, good quality.
- 3.Cleaning cycle: The filter screen is cleaned once a month (depending on the material characteristics), and it is not necessary to replace the filter screen within 3 years of normal use.
- 4.Maintenance cost: The equipment is a one-time investment, and the later maintenance cost is calculated by one year, and only the screen seal is to be replaced.
- 5.Slag removal: Open the butterfly valve and start the vibrating slag removal device, and automatically clean the slag without manual cleaning, which can take about 5 minutes.
Greases: crude oil, palm oil, sunflower oil, oxidized oil, winterized oil, fatty acids, etc.
Petrochemical: diesel oil, lubricating oil, paraffin, mineral oil, etc.
Beverages: beer, juice alcohol, milk, etc.
Organic chemicals: all kinds of organic acids, Hertz, benzene, aldehyde, etc.
Paints and varnishes: trees, varnishes, dyes, lacquers, etc.
Inorganic chemicals: bromine water, potassium cyanide, fluorspar, etc.
Food: gelatin, vinegar, starch, sugar juice, sweet water, etc.
Medicine: hydrogen peroxide, vitamins, etc.
Minerals: coal dust, cinder, etc.
Others: air, water purification, etc.
