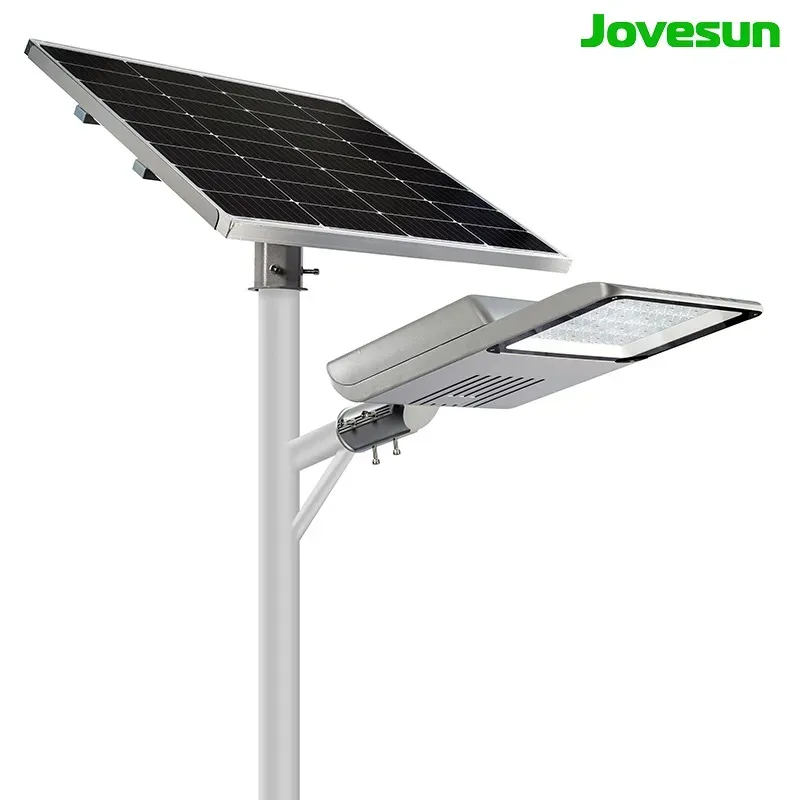

120W Split Type Solar Street Light with 240W/360W PV Panel
Description
Overview
Basic Info.
- Model NO. M26-100-ST
- Light Source LED Lamp
- Lamp Body Material Aluminum
- Light Type Solar
- Color Temperature Pure White
- Power ≥30W
- Technics Casting Aluminum
- Illumination Time 6h
- Cell Type LiFePO4
- Charging Time (H) 6
- Usage Street
- IP Rating IP66
- Certification CE, RoHS
- Voltage 12/24V
- With Light Source With Light Source
- Working Model 100%-75%-50%-100%
- Feature Support 4G Lora
- Sample Available
- Luminous Efficacy 205lm/W
- Mounting Height Max 15meter
- PV Panel Mono 240wp
- Battery 1152wh
- Certificate IP Ik Lm79 Lm80 CE RoHS
- Mounting Two Parts
- Transport Package Carton
- Specification 800*320*150mm
- Trademark Jovesun
- Origin China
- HS Code 9405410
- Production Capacity 5000pieces/Month
Packaging & Delivery
- Package Size 80.00cm * 35.00cm * 15.00cm
- Package Gross Weight 20.000kg
Product Description
Solar street lights model M25 was made according to ISO 9001 standard, with 205Lm/W high luminous efficacy, especially for PUBLIC lighting use. Designed by integrated fixture, with PV panel, Lithium battery, charge controller, led components all together, which make the installation easily. With 24% convert solar pv panel MONO type, and LiFePo4 battery, Constant current driver, MPPT charging agreement, which make the solar lights have excellent charge and discharge performance. M25 model 120watts can be used for Max 12meter mounting height with luminous flux 52lx, which is strong lumens with advanced technology of led improvement, with Type I Type II Type III Type IV Type V different optical lens which make the lights can be widely be used for expressway, highway, Road, Area lighting.....
Detailed Photos
Product Parameters
| Items | Parameters | M26st-50W | M26st-60W | M26st-80W | M26st-100W | M26st-120W | M26st-150W |
|---|---|---|---|---|---|---|---|
| Solar panel | 100Wp 18V | 120Wp 18V | 160Wp 18V | 200Wp 18V | 240Wp 18V | 300Wp 18V | |
| Battery | 244Wh | 384Wh | 576Wh | 768Wh | 960Wh | 1152Wh | |
| LED Chips | 3030 SMD4C*192pcs | 3030 SMD4C*192pcs | 3030 SMD4C*256pcs | 3030 SMD4C*300pcs | 3030 SMD4C*320pcs | 3030 SMD4C*384pcs | |
| Power | 50W | 60W | 80W | 100W | 120W | 150W | |
| Efficacy | 205Lm/W | ||||||
| Luminous flux | 6150lm | 8200lm | 12300lm | 16400lm | 20500lm | 24600lm | |
| CRI | >70Ra | ||||||
| CCT | 2700k to 6500k | ||||||
| Feature | MPPT - IoT Lora - Motion Sensor | ||||||
| Working model | Motion sensor+timer+Intelligent | ||||||
| Discharge time | 12 to 14 hours each night | ||||||
| Backup | Support 3 nights with BMS (Battery manage system) | ||||||
| Charge time | 5 hours | ||||||
| Mounting Height | 5-6 meter | 6-8meter | 8-10meter | 10-12meter | 12-14meter | 14-16meter |
