Product ID: 68592273
All-in-One Outdoor Solar LED Street Light (30W-60W)
Contact Now
Description
Basic Info.
Model NO.
HZ-TY-007
Light Source
LED Lamp
Lamp Body Material
Aluminum
Light Type
Solar
Color Temperature
3000K-6500K
Power
100W/180W/240W
Illumination Time
Over 12h
Cell Type
Lithium Battery
Charging Time (H)
6
Usage
Garden, Street, Outoors Patio Pathway Landscape Garden
IP Rating
IP65
Certification
CE, RoHS, ISO9001
Voltage
12/24V
With Light Source
With Light Source
Single Package Size
57*35*24cm
Working Mode
Motion Sensor+ Remote Control + Timing
Power Supply
Solar
Required Assembly
Yes
Battery
LiFePO4 Lithium Battery
Charging Time
4-6hours
Lighting Time
15-18hours
Control Method
Remote Control, Touch,APP
Material
Aluminum
Product Weightlkg
5
CCT
2700-6500K Optional
Lifespan (Hours)
50000
Product Name
Hz-Ty-007 All in One Solar LED Street Light
Transport Package
Paper Carton, Wooden
Trademark
Hongzhun
Origin
Guangdong, China
HS Code
9405429000
Production Capacity
5000PCS/Month
Product Description

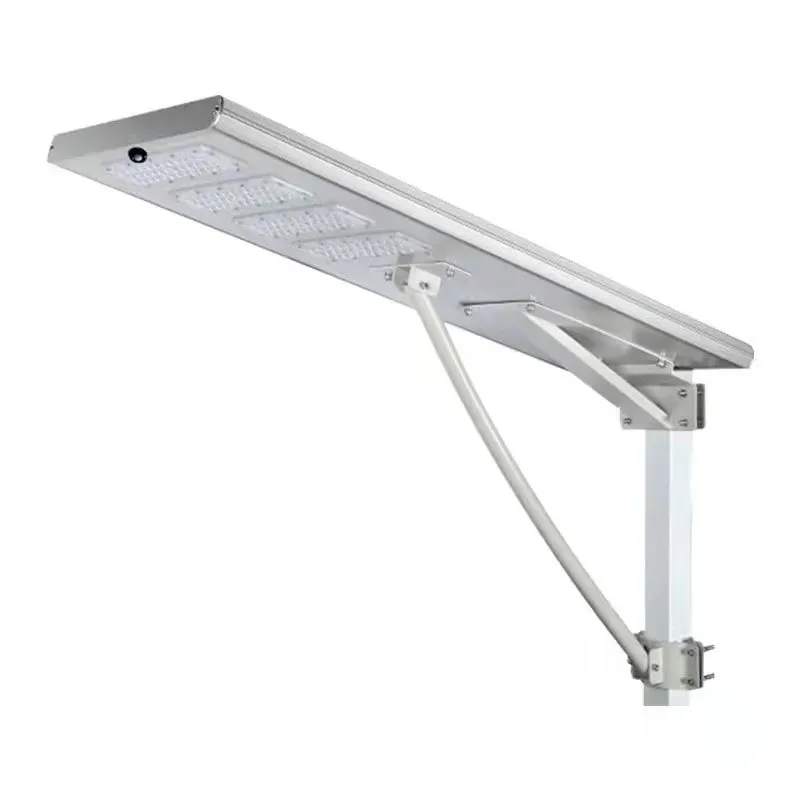

30W 40W 50W 60W All in One Intergrated Outdoor Solar LED Power Garden Street Light
| LED Lamp | High Power LED, High Brightness, High transmittance & Density LED Lens,Die-casting Aluminum | |
| CRI | >75 | |
| LED chip brand | Brideglux | |
| Light Efficiency | 150-180lm/w | |
| Lifetime | >50000hours | |
| Control mode:light-operated,time control,human body induction | ||

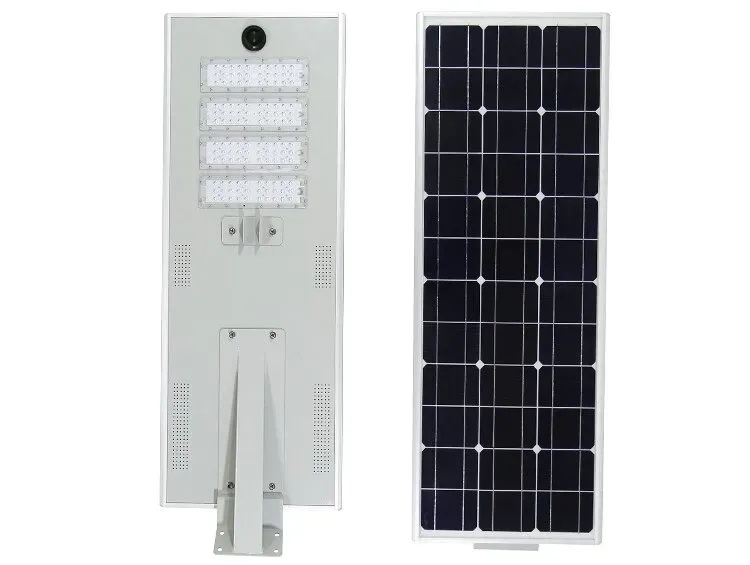

| Solar Panel | Mono-crystalline silicon.A Quality High Efficiency 20.5% Mono crystalline Silicon | |
| Brand | Famous brand | |
| Lifetime | 15 years | |
| Lithium battery | lithium iron phosphate battery Built-in LED lamp, with charge controller, Soft-Package, Fireproofing, Deep Cycle. Maintenance Free, Blast Protection. | |
| Capacity | Lifepo4 | |
| Lifetime | 5-10 years | |
| Adjust Angle | 180° | |
| Work time | 8-10hours per day,3 days back up | |
| Charge Time | 6-7 Hours (with Enough Strong Shine) | |
| Working Temperature | -30ºC~+70ºC | |
| Color temperature | 2700K-6500K(customizable) | |
| Housing material of main | Aluminum | |
| Waterproof | IP66 | |
| Certificate | CE / ROHS / IP66 | |
| Warranty | 3years | |
| Item NO | Specification | LED chip | Solar capacity | Products size(mm) | Recommended installation height |
| HZ-TY-007 40W 3.2V | 1.LED : SMD3030 Brideglux chip 140-150lm/w 2.Material: Aluminum alloy 3.Waterproof grade: IP65 4.Charging time:8H strong sunlight 5.Light model :Light Control +Time Control 6.Working time :All light >8hours, Power saving mode>24hours, Raining days 2-3days 7.Beam angle :120° 8.Color:3000-7000K 9.Light pole diameter:40-76mm 10.Stroage temperature :0-55° 11.Operating Humidity 90RH% 12.Discharge temperature :-10~60° 13.Control method: light+Time (Motion sensor +2USD/PC |
SMD3030 2M | Solar panel: 6V40W mono Battery: 3.2V 40AH |
828*300*43/50 | 4-5M |
| HZ-TY-007 40W 12V | Solar panel:18V40W mono Battery:12V 12AH |
||||
| HZ-TY-007 50W 3.2V | SMD3030 3M | Solar panel:6V60W mono Battery:3.2V50AH |
1080*359*43/50 | 5-6M | |
| HZ-TY-007 50W 12V | Solar panel:18V60W mono Battery:12V 18AH |
||||
| HZ-TY-007 60W 3.2V | SMD3030 4M | Solar panel:6V70W mono Battery:3.2V60AH |
1080*426*43/50 | 5-7m | |
| HZ-TY-007 60W 12V | Solar panel:18V70W mono Battery:12V 24AH |
||||
| HZ-TY-007 70W 3.2V | SMD3030 4M | Solar panel:6V80W mono Battery:3.2V 70AH |
1250*359*43/50 | 7-8m | |
| HZ-TY-007 70W 12V | Solar panel:18V80W mono Battery:12V 30AH |
||||
| HZ-TY-007 80W 3.2V | SMD3030 5M | Solar panel:6V90W mono Battery:3.2V 80AH |
1306*426*43/50 | 8-9m | |
| HZ-TY-007 80W 12V | Solar panel:18V90W mono Battery:12V 36AH |
||||
| HZ-TY-007 90W 3.2V | SMD3030 5M | Solar panel:6V100W mono Battery:3.2V 90AH |
1468*359*43/50 | 9-10m | |
| HZ-TY-007 90W 12V | Solar panel:18V100W mono Battery:12V 42AH |
||||
| HZ-TY-007 100W 3.2V | SMD3030 6M | Solar panel:6V120W mono Battery:3.2V 100AH |
1468*426*43/50 | 9-11m | |
| HZ-TY-007 100W 12V | Solar panel:18V120W mono Battery:12V48AH |
||||
| HZ-TY-007 120W 12V | SMD3030 6M | Solar panel:18V140W mono Battery:12V 54AH |
1340*528*43/50 | 10-12m | |
| HZ-TY-007 150W 12V | SMD3030 6M | Solar panel:18V150W mono Battery:12V 60AH |
1480*528*43/50 | 12-13m |
FAQ
Q1:Can I have a sample order for led light?
AYes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2:What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3:How to place an order?
A: Our production lead time is 25-45 days now from the date get your payment for normal order and details have to be negotiated before placing the orders
Q4:How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.Airline and sea shipping also optional.
Q5:How to proceed an order for led light?
AFirstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6:Is it OK to print my logo on led light product?
A:Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7:Do you offer guarantee for the products?
A:Yes, we offer 2-5 years warranty to our products.
Q8:How to deal with the faulty?
A:Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
