Basic Info.

Model NO.	AI2-YHA-4000-210823c
Light Type	Solar
Color Temperature	6000K (3000~6500K Full Range Available)
Power	40W
Technics	Electroplating
Illumination Time	12h
Cell Type	3.2V/44ah (140.8wh) / Grade a LiFePO4 Lithium
Charging Time (H)	4
Usage	Garden, Street
IP Rating	IP66
Certification	CE, RoHS
Voltage	12/24V
With Light Source	With Light Source
Transport Package	Customary Carton/ OEM Acceptable
Specification	50520582mm
Trademark	ESAVIOR / ODM
Origin	China (Mainland)
HS Code	9405409000
Production Capacity	50,000 Sets/Year

Product Description

Welcome to EASVIOR solar lighting manufacture. For all range products please visit our website: to download brochure & specification & user manual

FEATURES & ADVANTAGES

120LM/W high lamp lumen efficiency
100,000+ Hours long LED lifespan, with professional heat dissipation design
25 Years long product lifespan
2,000+ Cycles life LiFePO4 batteries with inbuilt Micro-BMS technologies
99.9% MPPT/PWM tracking efficiency
IP68 rated controller vs. IP66 rated electrical compartment
5~7 Days cloudy/rainy days autonomy
Flexible & Customized Working Modes with timer and motion sensor by programming

APPLICATIONS

Secondary road lighting
Street lighting
Roadway lighting
Public Areas lighting (squares, theme parks, park lots…)

TECHNICAL SPECIFICATIONS

MODEL NO.	AI2-YHA-4000
Items	LED Light Source
Rated Power	3.2V/ 40W (60LEDsx1 modules)
LED Brand	3030 (LED Lumen: 195lm/W)
Lumens (LM )	4000~4800lm
Life-span	100,000 hours
Color Temp. (CCT)	6000K (3000~6500K Full range available)
CRI	>70
Viewing Angle	140*70°
External Solar Panel	Power: 50Wp (High Efficiency PV)
Life-span	25 years
Batteries	Capacity/Type: 3.2V/44AH (140.8WH) / Grade A LiFePO4 Lithium
Life-span	8+ years (2000 circles @60% DoD)
Controller	Type: PMW / IP68
Timer	Timer for 10 sections
Full Charge Time	By Solar: <4 hours
Discharge Time	6 hours a day >7 continual cloudy/rainy days
Working Temp.	-30ºC~+80ºC
Mounting Height/Brackets	5~6 m/ Available Brackets: Wall/Pole Mounting
Recommended Space Between Lights	20~25m
Materials	Aluminium Alloy
Certificate	CE / ROHS / IP66/ IK08/ TÜV-SUD ISO9001/ ISO14001
Warranty	3 years

DETAILS SHOW

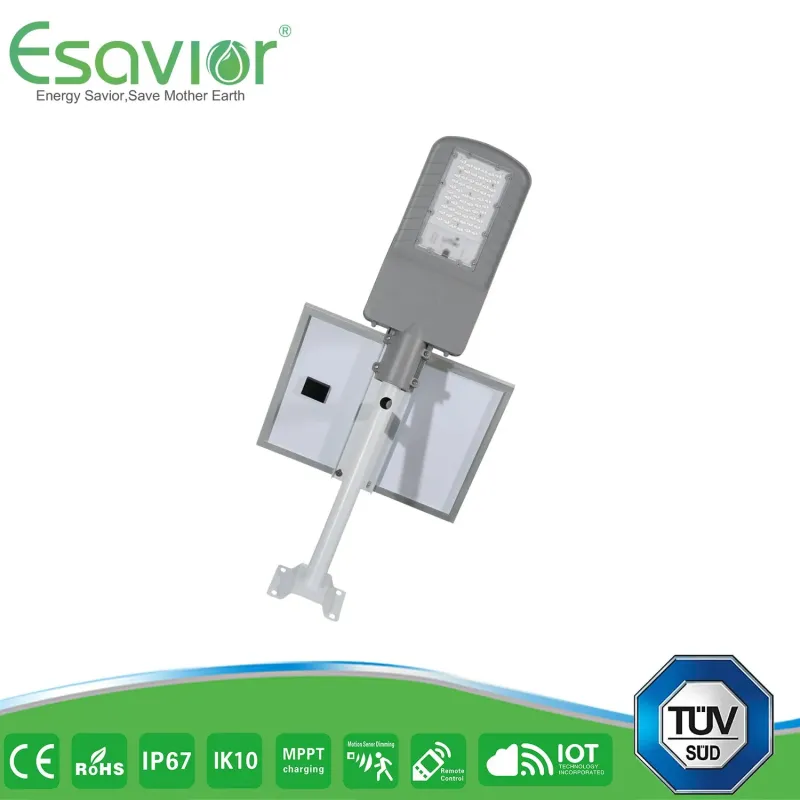

Esavior 40W Waterproofed All in Two LED Solar Street Lights

WHY ESAVIOR ?

30+ patents were awarded to our Solar solutions including Solar Street Lights, Solar Controller, Solar Inverters, Solar Camera and IoT online Monitoring System for Solar Street Light. ISO 9001/14001 certificates were awarded by TUV-SUD. IEC 60598/ IES TM-21 / IES RP-27.3-07 reports were awarded by TUV-SUD besides our existing CE/RoHs/IP66 certificates. ESAVIOR finished projects were highly praised by UNDP, UNHCR, UNOPS, Red Cross, The World Bank and government in over 100 countries including UK, Sweden, Italy, USA, Argentina, India, Philippines, South Africa, Botswana, Egypt, Tanzania, Rwanda, Kenya, Syria, Lebanon, Sierra Leone etc. Our 3000+ sqm factory with global solar RD & Inspection Center has the most advanced inspection equipments and faultless QA system.

All in One /Integrated LED Solar Street Light

SUPERIOR (SILVER) Series

PROJECTS SHOW

CERTIFICATES SHOW

WORKSHOP SHOW

OVERSEAS EXHIBITION

Advantages

Wireless Application: Integrated solar panel, LED, lithium battery, micro-controller and other accessories into one system, simple and stylish.
Micro-Computer Controlled: Combine light control system and time control system perfectly, ensure whole system more energy-efficient.
Easy Installation: No power required, no cables required, easy installation in 5 minutes.
Good Heat Dissipation: The shell is aluminum with scientific cooling hole, and also built-in aluminum block on the back of the light source to support good heat dissipation .
Extreme light: Light efficiency reach 195 lm/w, at same watt , more Bright, lighting area is expanded and more uniformity
Lithium battery: Adopt LiFePO4 lithium battery to replace MnNiCo lithium battery, more than 8 years lifespan, longer lifetime.
Modular design: All components are modular design and in standardized production. Battery can be easily replaced if needed.
Low cost: Compared with traditional solar led lights, much lower cost, easy to transport.

SOLAR STREET LIGHT RFQ

Q1: Does the lamp light on automatically?: A: Yes, it will light on automatically at darkness no matter which mode except "OFF".
Q2: Can I order samples for solar street light?: A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: What about the lead time?: A: 3 workdays for sample, 7-15 workdays for batch order (more than 100pcs).
Q4: Do you offer guarantee for the products?: A: Yes, we offer 3-5 years warranty to our products.
Q5: Can the lamp be used in strong wind environment?: A: Of course yes, as we take Aluminum-alloy holder, solid and firm, Zinc plated, anti rust corrosion.
Q6: What's the difference between Motion sensor and PIR sensor?: A: Motion sensor also called radar sensor, works by emitting high frequency electric wave and detecting people movement. PIR sensor works by detecting environment temperature changing, which usually is 3-5 meters sensor distance. But motion sensor can reach 10 meters distance and be more accurate and sensitive.
Q7: How to deal with the faulty?: A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.05%. Secondly, during the guarantee period, we will send replacements with new order for small quantity.
