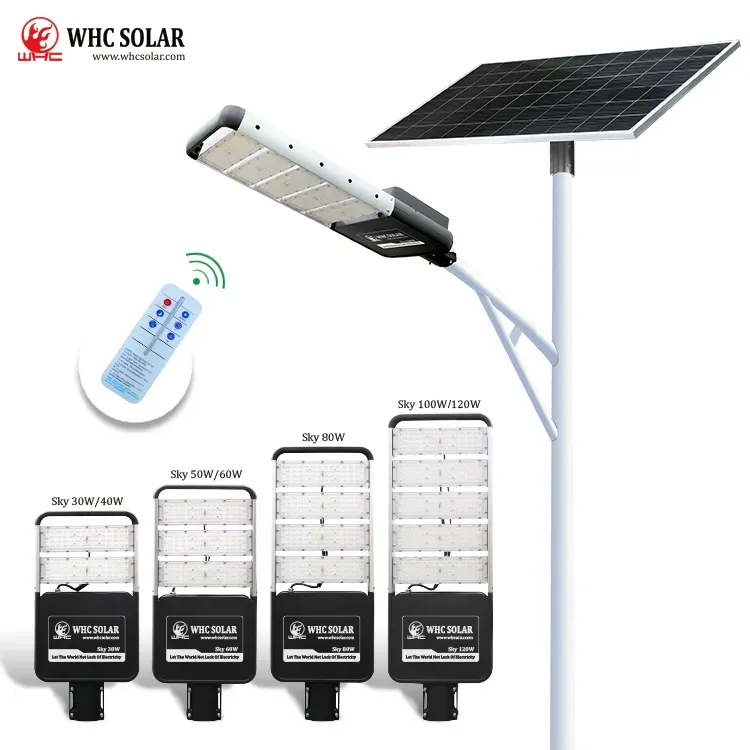

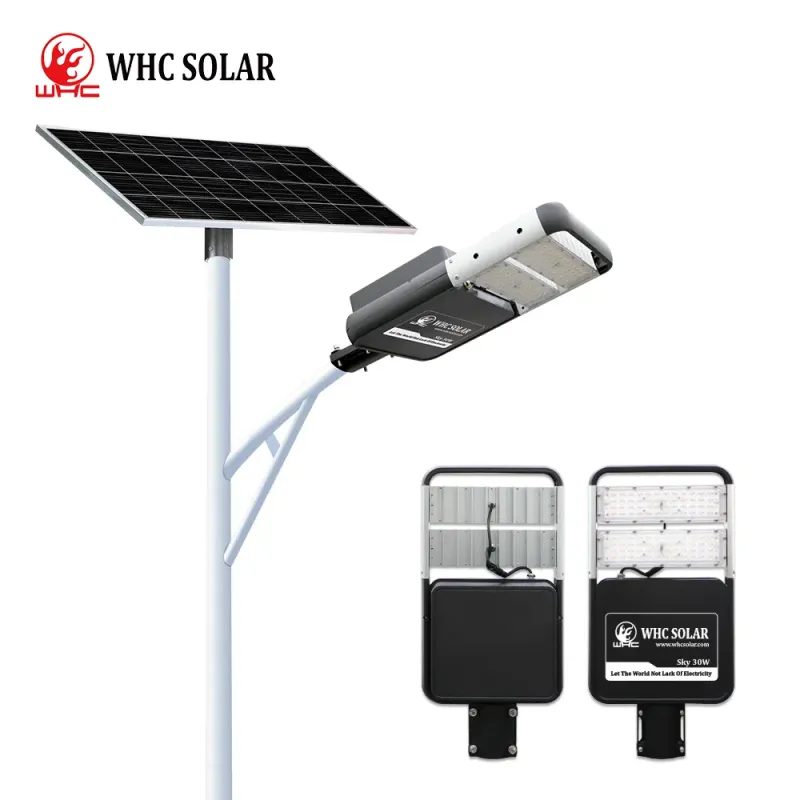

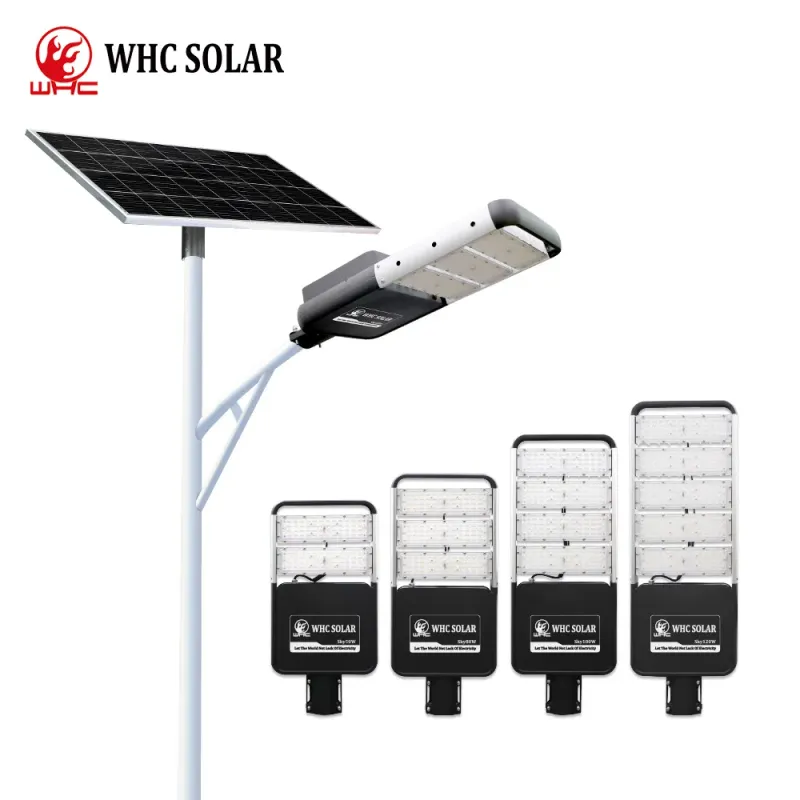

IP65 All-in-One Integrated Split Solar Panel LED Street Light
Contact Now
Description
Basic Info.
Model NO.
Sky30W
Light Source
LED Lamp
Lamp Body Material
Aluminum Alloy
Light Type
Solar
Color Temperature
Cool White
Power
30W
Technics
Electroplating
Illumination Time
5-7 Dads
Cell Type

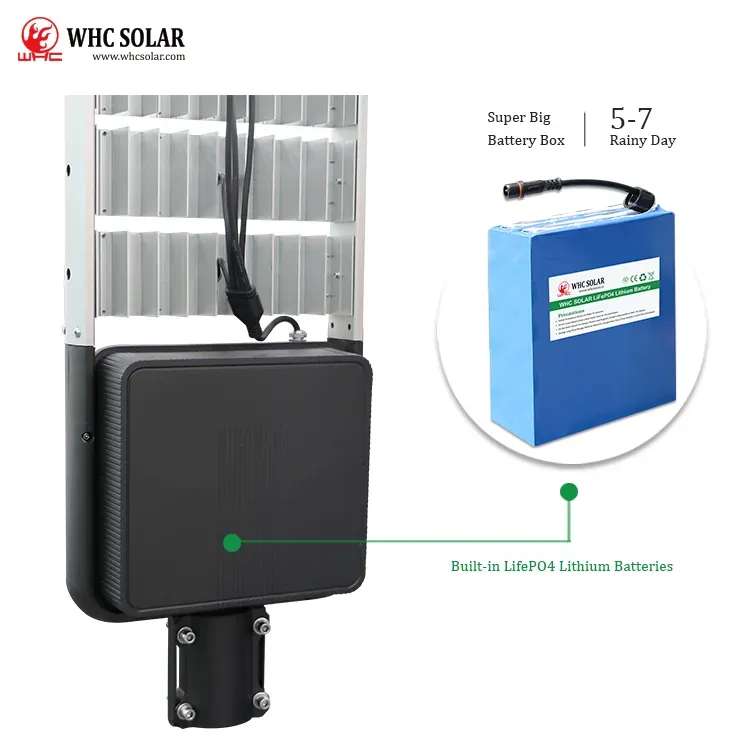

LiFePO4 12.8V30ah
Charging Time (H)
4-6hours
Usage
Garden, Street, Housing Estate
IP Rating
IP66
Certification
CE, RoHS
Voltage
12.8V
With Light Source
With Light Source
Product Name
Whc All in Two Intergrated Split Solar Panel LED S
Model
Intergrated (Pb) Series
Solar Panel Mono
Mono 50 W
LEDs
96 PCS
Lamp Power(W)
30/40/50/60/80/100/120 (W)
Emitting Color
Cold White / Warm White
Color Temperature(CCT)
6000K (Daylight Alert)
Beam Angle(°)
140
CRI (Ra>)
70
Lamp Luminous Efficiency(Lm/W)
220lm/W
Lamp Luminous Flux(Lm)
4000lm-12000lm
Hot Brand
Whc
Transport Package
Package in Carton or According to Your Requiremen
Specification
30W
Trademark
WHC / WHC SOLAR
Origin
Guangdong, China (Mainland)
Production Capacity
10000pieces/Month
Product Description
WHC IP65 All in Two Intergrated Split Solar Panel LED Street Light
Model: SKY30W
Product Name: Whc Solar All In One LED Solar Street Light
Model: SKY30W
Product Name: Whc Solar All In One LED Solar Street Light
PRODUCT FEATURES
| We thank you for the inquiry and please find below our products features | |||||||

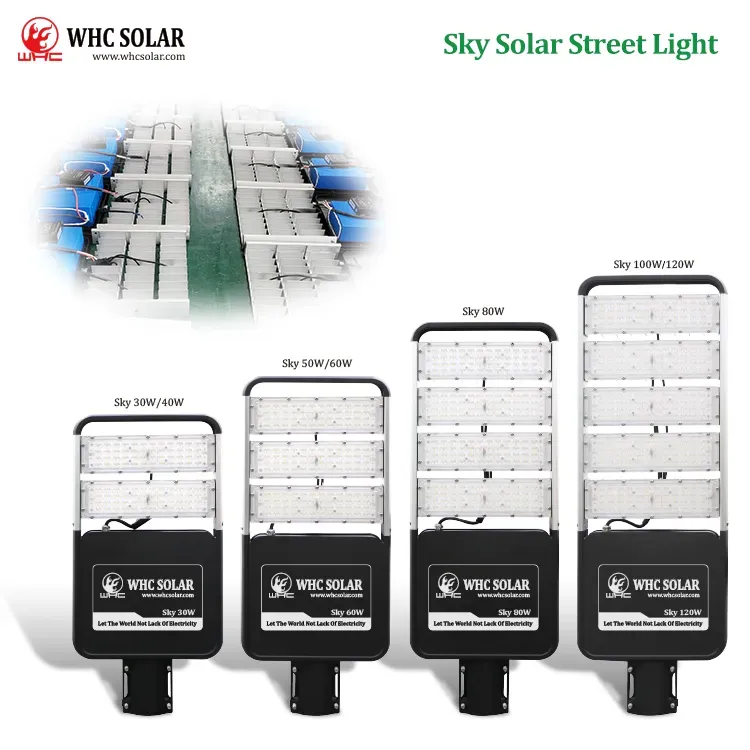

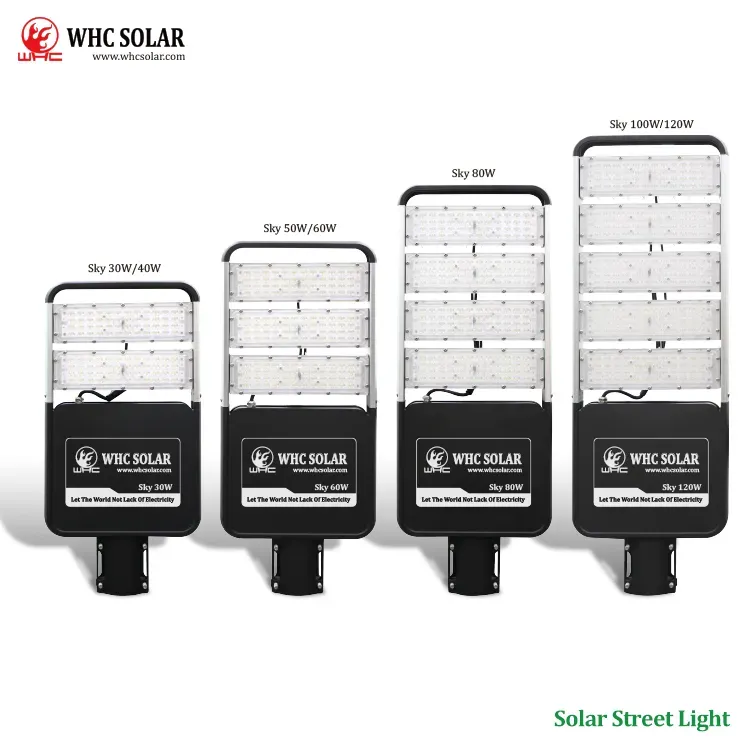

| Model | Sky 30W | Sky 40W | Sky 50W | Sky 60W | Sky 80W | Sky 100W | Sky 120W |
| LED Power | 30W | 40W | 50W | 60W | 80W | 100W | 120W |
| Led Chip | America Bridgelux 3030 | ||||||
| Led | 96PCS | 96PCS | 144PCS | 144PCS | 192PCS | 240PCS | 240PCS |
| Mono Solar Panel | 50W | 60W | 70W | 80W | 100W | 150W | 200W |
| LifePO4 Lithium Battery | 12.8V30AH | 12.8V36AH | 12.8V42AH | 12.8V48AH | 12.8V60AH | 12.8V72AH | 12.8V84AH |
| Mounting Height | 4-6m | 5-7m | 6-8m | 7-9m | 8-10m | 9-12m | 10-12m |
| Space between 2 lamps | 10-20m | 15-25m | 20-30m | 20-30m | 25-35m | 30-40m | 30-40m |
| Controller | MPPT | ||||||
| Remote Control | Yes,each order 1PC | ||||||
| Material | High Class Aluminum | ||||||
| Mounting Brackets | optional | ||||||
| IP Rating | IP66 | ||||||
| Charging Time | 4-6H | ||||||
| Working Time | 5-7 cloudy / Rainy Days Back Up | ||||||
| Color Temperature | Nature White 6000-6500K | ||||||
| CBM/set | 0.053 | 0.054 | 0.062 | 0.075 | 0.082 | 0.113 | 0.13 |
| Weight/set | 10 | 11 | 12.5 | 13.6 | 17.5 | 21 | 24 |
