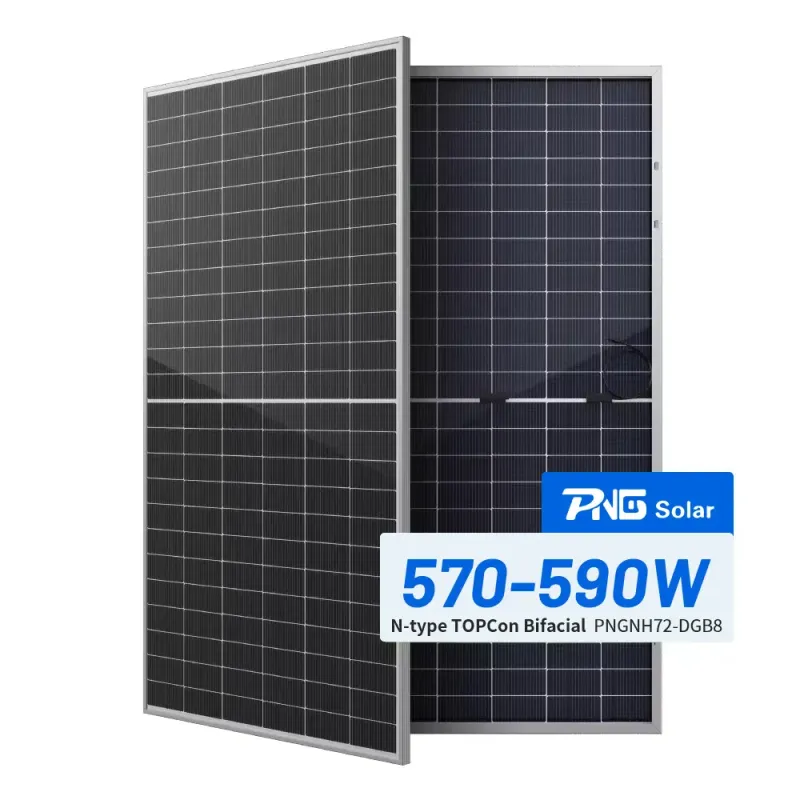

Topcon Solar Panel Manufacturer - OEM/ODM Factory with TUV CE Certification
Description
Overview
Basic Info.
- Model NO. PNGNH72-B8 580W
- Number of Cells 144PCS
- Application Residential, Industrial, Commercial
- Condition New
- Certification ISO, CE, TUV
- Material Monocrystalline Silicon
- Junction Box IP68 Rated
- Glass 3.2mm Coated Glass Tempered Glass
- Type Half Cut Cell
- Weight 32kg
- Panel Efficiency 22.4%
- Backsheet Tpt Material
- Frame Anodized Aluminium Alloy
- Front Glass 3.2mm High Transmission Tempered Glass
- Transport Package 31PCS One Pallet
- Specification 2278*1134*35mm
- Trademark PNG Solar
- Origin China
- HS Code 854143000
- Production Capacity 800mwatt/Years
Packaging & Delivery
- Package Size 224.00cm * 114.00cm * 40.00cm
- Package Gross Weight 1440.000kg
Product Description
ELECTRICAL DATA (STC)
| Module Type | PNGNH72-B8560 | PNGNH72-B8565 | PNGNH72-B8570 | PNGNH72-B8 575 | PNGNH72-B8 580 |
|---|---|---|---|---|---|
| Rated output (Pmp/Wp) | 560W | 565W | 570W | 575W | 580W |
| Short Circuit Current (Isc) | 13.9 | 13.96 | 14.02 | 14.08 | 14.14 |
| Open Circuit Voltage (Voc) | 50.6 | 50.8 | 51.0 | 51.2 | 51.4 |
| Maximum Power Current (Impp) | 13.8 | 13.14 | 13.19 | 13.25 | 13.3 |
| Maximum Power Voltage (Vmpp) | 42.8 | 43.0 | 43.2 | 43.4 | 43.6 |
| Module efficiency (%) | 21.67% | 21.86% | 22.06% | 22.25% | 22.44% |
Standard Test Condition (STC): Irradiance 1000W/m², Cell Temperature 25ºC, AM1.5

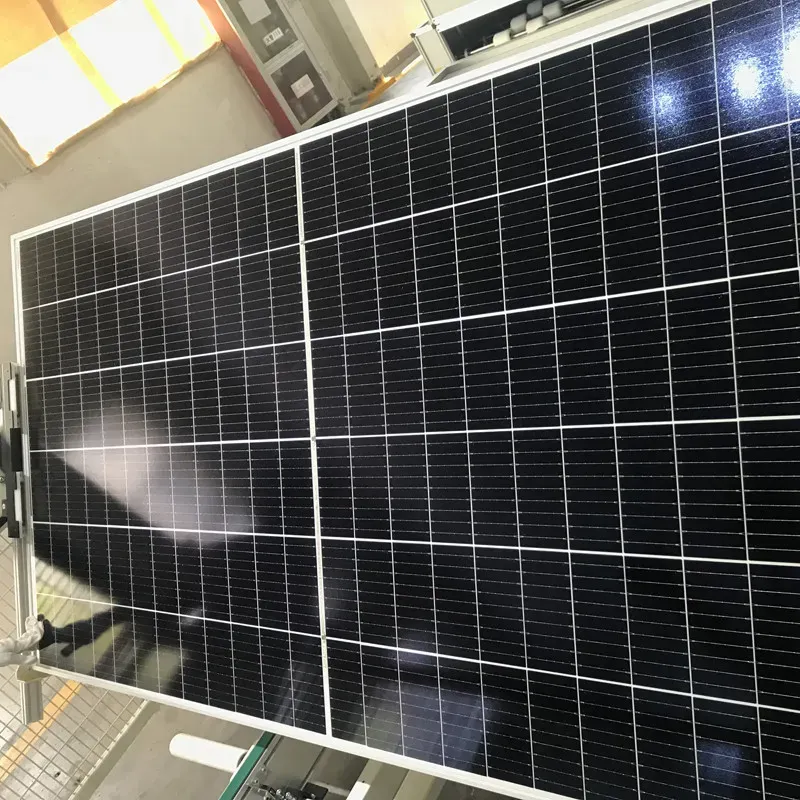

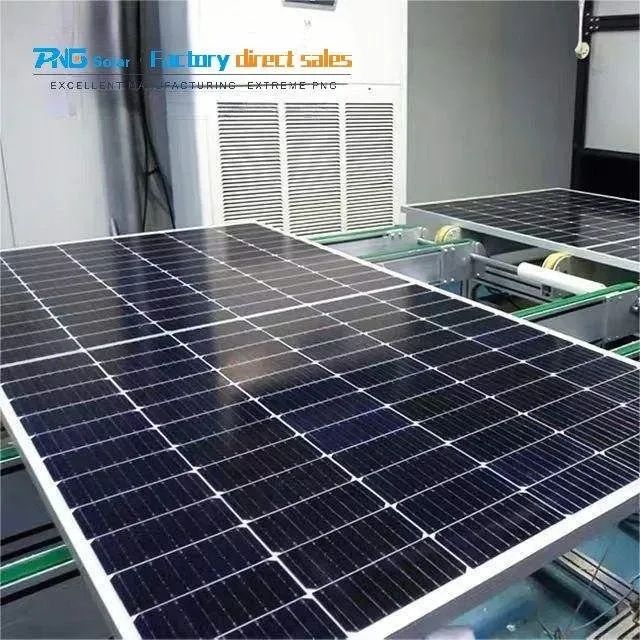

Product Process
Strictly QC System
Hefei Pinergy Solar Technology Co.,Ltd is a professional and fast growing company. The business covers the R&D, production and sales of PV modules. Power station and PV system products, power generation and operation and maintenance services, etc. The company is located in Hefei City, Anhui Province, which is one of the main production bases of the photovoltaic industry in the world. We are world-renowned manufacturer and supplier of solar cells, solar PV modules and solar systems. Covering an area of 46000 square meters, we have more than 200 employees now, which makes annual production capacity of 800MW and 90% were exported all over the world. The advanced production system and excellent quality control have enabled us to win the trust and support of our customers. We have got certificates of TUV, CE, etc.
At present, PINERGY has established a global sales network covering 70 countries/regions. Mainly covering Europe, Asia and South America, customers all over the world.
