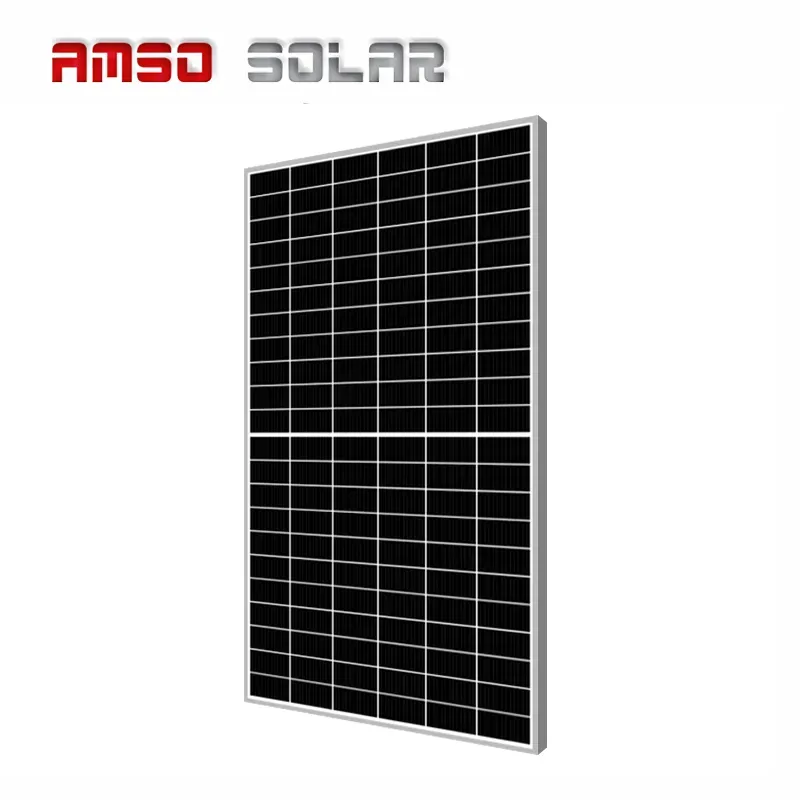

Chinese Factory 700W Mono Solar Panel for Home and Industry
Description
Basic Info.
Model NO. AS700S9
Number of Cells 132 cells
Application Industrial
Condition New
Certification ISO, CE, TUV, IEC
Material Monocrystalline Silicon
Transport Package Well Packaged with Carton, Wood Case, Pallet or Cu
Specification 2384*1303*35mm
Trademark AMSO SOLAR
Origin China
Packaging & Delivery
Package Size 133.00cm * 113.00cm * 251.00cm
Package Gross Weight 1073.000kg
Product Description
Chinese Factory half cell solar module 500W 550W 600W 650W 700W Mono Solar Panel with 25 Years Warranty for Home and Industry use
| Model Type | Power(W) | Number of Cells | Dimensions(MM) | Weight(KG) | Vmp(V) | Imp(A) | Voc(V) | Isc(A) |
|---|---|---|---|---|---|---|---|---|
| AS650S9 | 650 | 132 | 2384*1303*35 | 34.5 | 37.9 | 17.15 | 45.5 | 18.32 |
| AS660S9 | 660 | 132 | 2384*1303*35 | 34.5 | 38.0 | 17.37 | 45.6 | 18.32 |
| AS670S9 | 670 | 132 | 2384*1303*35 | 34.5 | 38.1 | 17.59 | 45.7 | 18.33 |
| AS680S9 | 680 | 132 | 2384*1303*35 | 34.5 | 38.2 | 17.80 | 45.8 | 18.56 |
| AS690S9 | 690 | 132 | 2384*1303*35 | 34.5 | 38.3 | 18.02 | 45.9 | 18.79 |
| AS700S9 | 700 | 132 | 2384*1303*35 | 34.5 | 38.4 | 18.23 | 46.0 | 19.02 |
Standard test conditions: measured values (atmosphiric mass AM.5, irradiance 1000W/m2, battery temperature 25ºC)
Temperature rating
Rated battery operating temperature 45±2ºC
Maximum power temperature coefficient -0.4%/ºC
Open circuit voltage temperature coefficient -0.29%/ºC
Short circuit current temperature coefficient -0.05%/ºC
Limit parameter
Operating temperature -40-+85ºC
Maximum system voltage 1000/1500VDC
Maximum fuse rated current 25A
Payment Term
T/T, EXW: 30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F): 30% T/T in advance, paid the balance against copy of B/L
CIF
L/C: L/C amount above 50,000 usd, we can accept L/C at sight
West Union: Amount lower than 5000usd
Delivery Time
7-10 working days after receiving payment (should be decided according to quantity)
