Product ID: 68592346

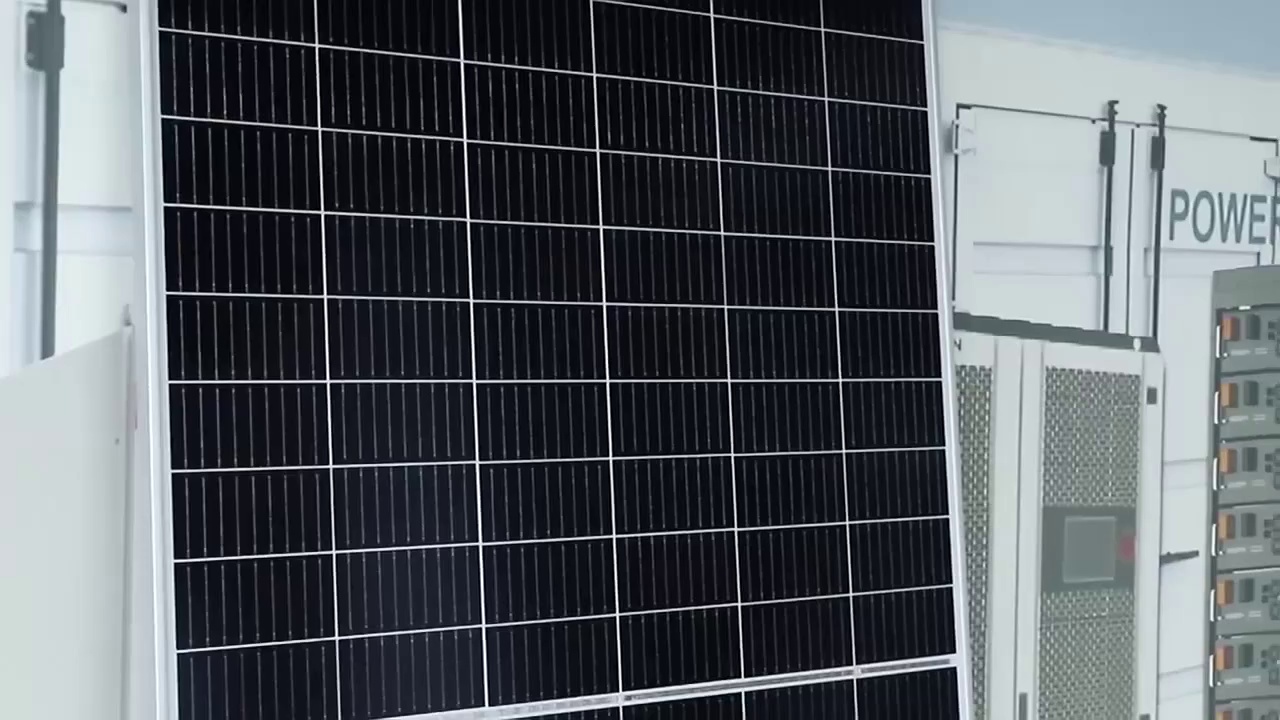

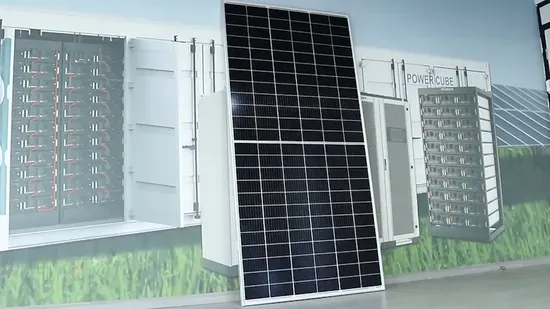

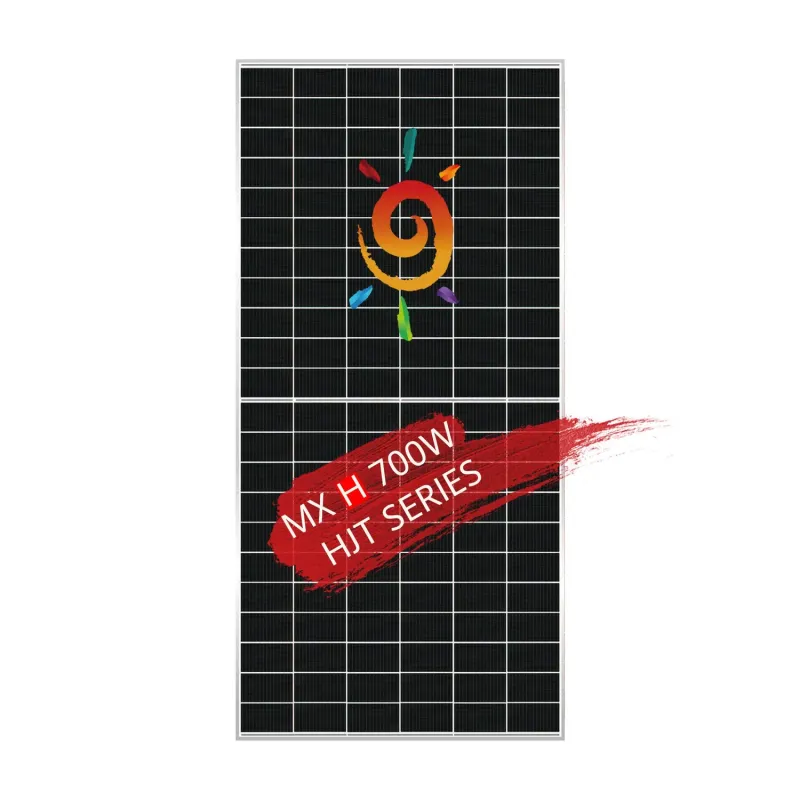

Solar Panel Module Price for Energy Storage System
Contact Now
Description
Basic Info.
Model NO.
RSM700M-132HC
Number of Cells
132cells
Application
Solar Energy System Projects
Condition
New
Certification
EST, ISO, CB, CE, TUV, VDE, IEC61215, IEC617, Pid, Cec, Jet
Material
Monocrystalline Silicon
Product Name
700W Solar Panels
Frame
Silver/Black Anodized Aluminium Alloy
Junction Box
IP68 Rated, 3 Diodes
Tpt Back Sheet
Black/White Backsheet
Cells
210/182/166/158.75mm
Cable
4mm2 Symmetrical Lengths
System Voltage
1000V/1500VDC
Connector
Compatible Mc-4/Male/Female/Fuse
Glass
3.2mm High Transmission Tempered Glass
Transport Package
Rosen Design Standard Carton on Pallets
Specification
2384*1303*35mm opt
Trademark
Rosenpv or OEM
Origin
China
HS Code
854143
Production Capacity
500000watts/Day
Packaging & Delivery
Package Size
200.00cm * 150.00cm * 180.00cm
Package Gross Weight
200.000kg
Product Description
Product Description
Rosen Solar, with more than 4 automatic lamination lines, are professional manufacturer of solar panels with wide power range from 5w to 300W, 450W, 550W, 600W, 650W, 680W, 700W, 800W etc. Solar panels, like PERC, N-Type TOPCON, HJT, Shingle types etc and bifacial/double glass, single glass, full black, black frame, and frameless half cell panels Mono and Polycrystalline panels, are all available in China and Europe stock. Tier 1 panels brands like Trina, JA, Jinko, Tongwei etc are available too. OEM and ODM service acceptable with the min one pallet. We have all certificates like TUV, CE, ISO, IEC etc, And technicians will provide manuals, and installation CAD SKETCH designs for roof or ground installation.
Technical Specification Data(STC) of Solar Panel
|
Model
|
RSM680-132HJT
|
RSM685-132HJT
|
RSM690-132HJT
|
RSM695-132HJT
|
RSM700-132HJT
|
|
Rated Maximum Power at STC
|
680W
|
685W
|
690W
|
690W
|
700W
|
|
Maximum Power Voltage(Vmp/V)
|
41.49
|
41.65
|
41.80
|
41.95
|
42.10
|
|
Maximum Power Current(Imp/A)
|
16.39
|
16.45
|
16.51
|
16.57
|
16.63
|
|
Open Circuit Voltage(Voc/V)
|
49.50
|
49.66
|
49.82
|
49.98
|
50.13
|
|
Short Circuit Current(Isc/A)
|
17.19
|
17.25
|
17.31
|
17.37
|
17.43
|
|
Module Efficiency(%)
|
21.89
|
22.05
|
22.21
|
22.37
|
22.53
|
|
Standard Test Condition(STC)
|
Irradiance 1000w/m², Cell Temperature 25ºC, Air Mass AM1.5
|
||||
|
ELECTRICAL DATA(NOCT)
|
|||||
|
Maximum Power-PMAX (Wp)
|
750W
|
756W
|
761W
|
767W
|
772W
|
|
Maximum Power Voltage(Vmp/V)
|
41.49
|
41.65
|
41.80
|
41.95
|
42.10
|
|
Maximum Power Current(Imp/A)
|
18.08
|
18.16
|
18.21
|
18.29
|
18.34
|
|
Open Circuit Voltage(Voc/V)
|
49.50
|
49.66
|
49.82
|
49.98
|
50.13
|
|
Short Circuit Current(Isc/A)
|
18.96
|
19.04
|
19.09
|
19.17
|
19.22
|
|
NOCT: Irradiance at 800W/m², Ambient Temperature 20°C, Wind Speed 1m/s.
|
|||||

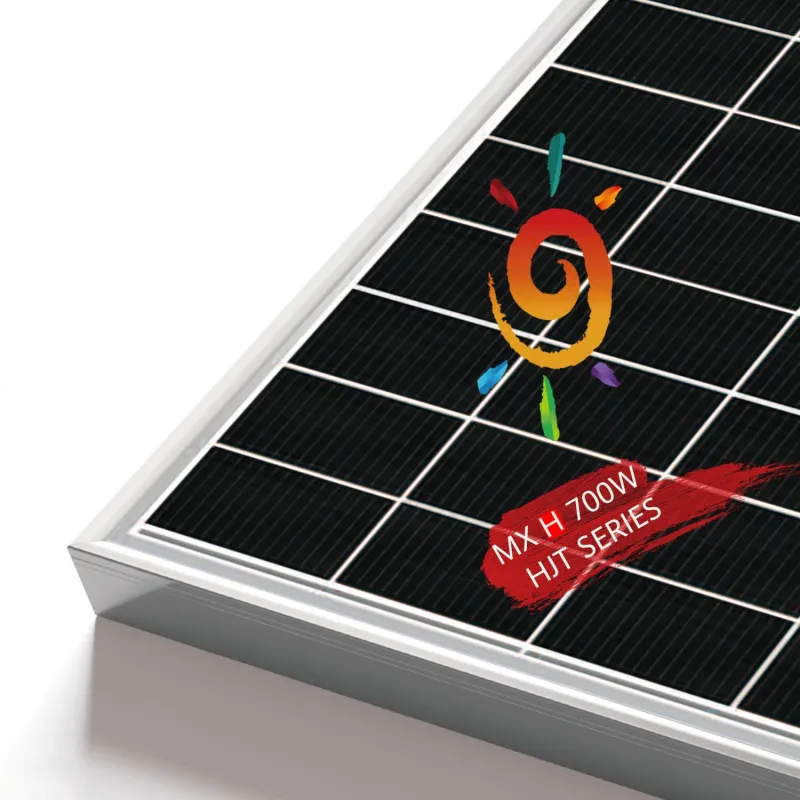

Detailed Images of Solar Panel
EVA Solar Cell Frame
High Transmittance EVA,High GEL Content To 5BB, 6BB, 9BB, 10BB, 12BB Available 35mm 40mm Anodized Aluminium
Provide Good Encapsulation And Protect Cells 158.75cells, 166cells, 182cells,210cells Alloy
From Vibration With Longer Durability. High Efficiency Cells Anti-Pid Black/Silver Color Optional
Provide Good Encapsulation And Protect Cells 158.75cells, 166cells, 182cells,210cells Alloy
From Vibration With Longer Durability. High Efficiency Cells Anti-Pid Black/Silver Color Optional
Junction--Box Compatible MC4 Label
IP 68 rated Waterproof MC4 Compatible /MC4 EVO2/TS4* Waterproof Customized Label
Innovative Full-Glue-Filled 500N Tensile Strength OEM/ODM with your Logo
Innovative Full-Glue-Filled 500N Tensile Strength OEM/ODM with your Logo

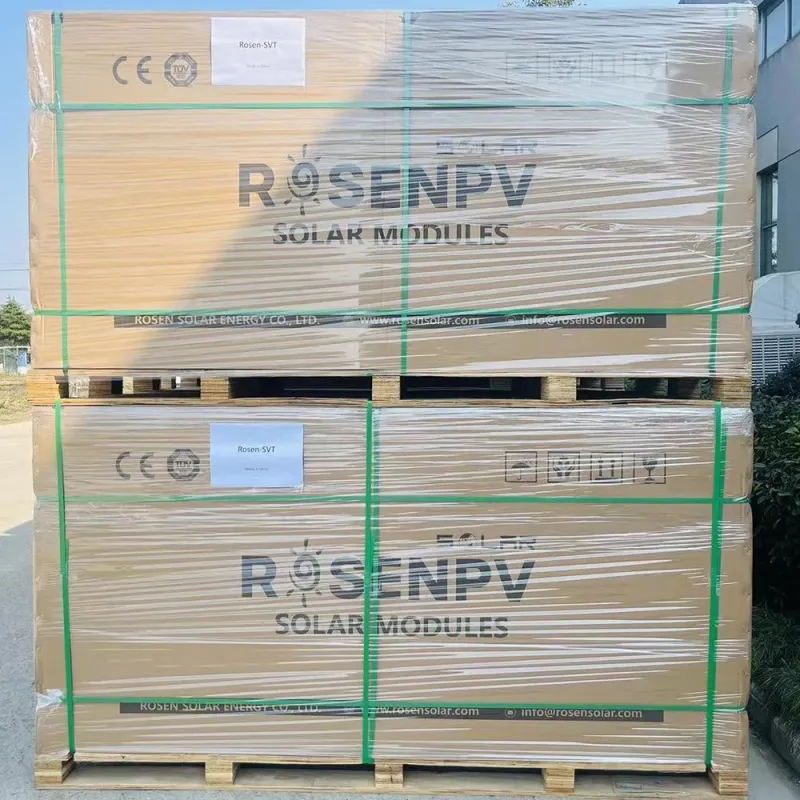

Packing & Delivery
Packing Details : In carton on pallet or wooden box, OEM with your logo availableDelivery Details : 5-10 working days

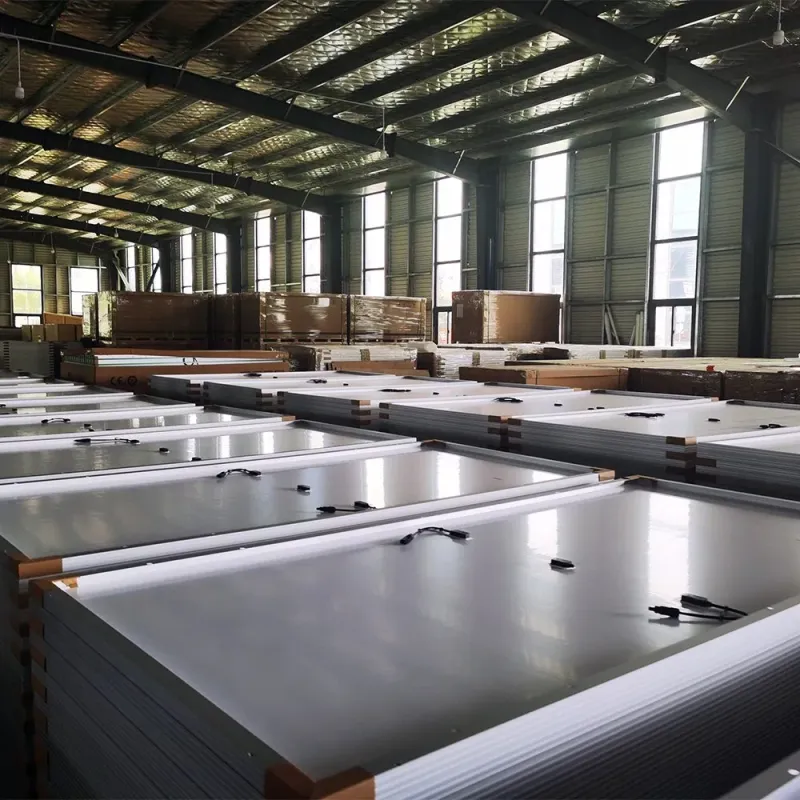

Factory & Stock

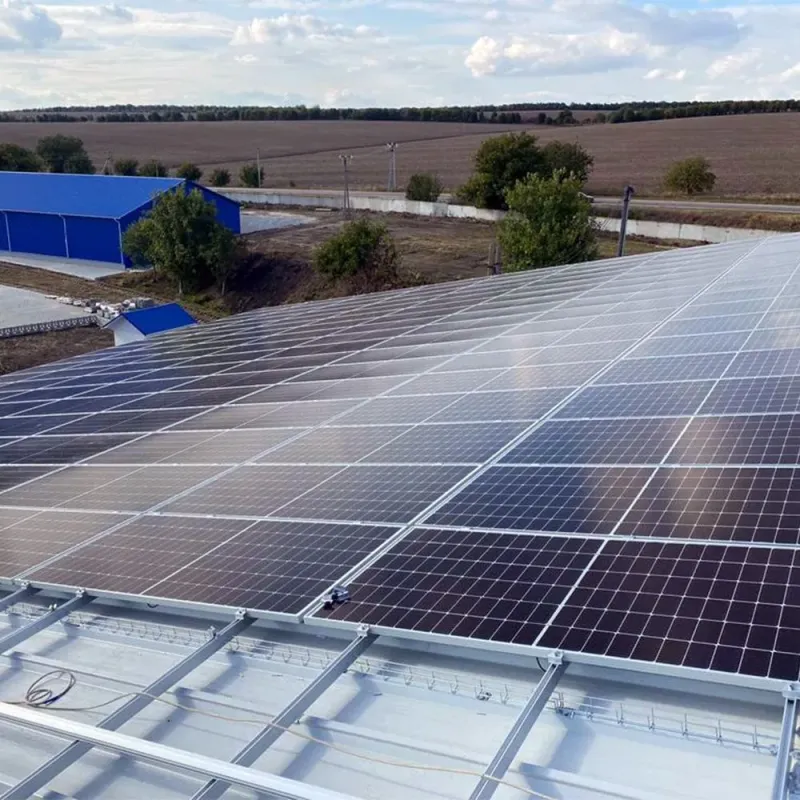

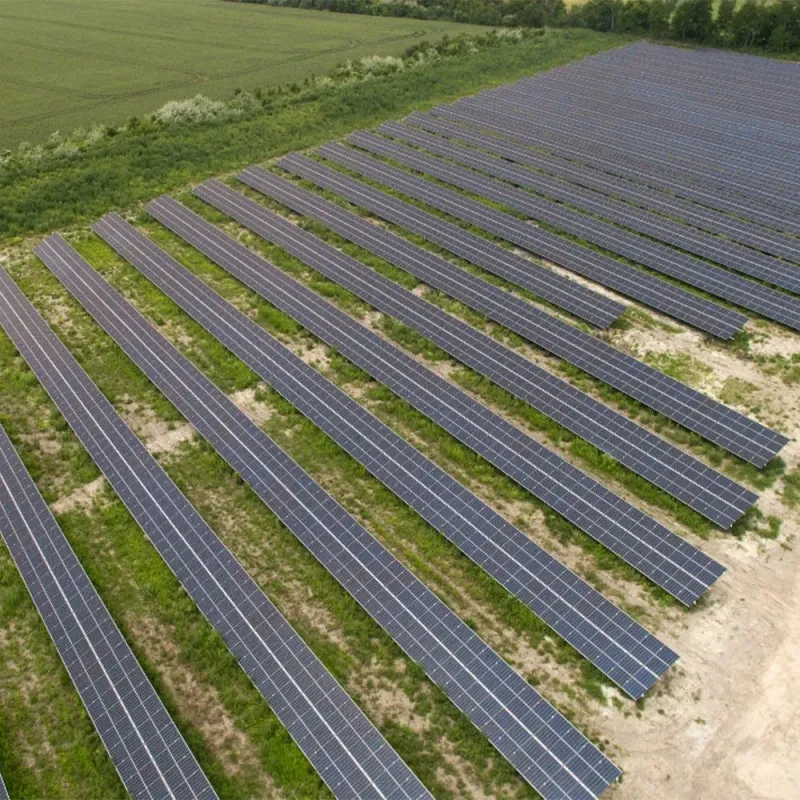

Projects
Rosen projects are installed around the world for home, commercial and industrial use. Home Lithium battery hybrid solar systems are more installedfor roof mounting with solar panel power range 3kw, 5kw, 8kw, 10kw, 15kw, 20kw, 30kw etc, lithium batteries ESS BESS with power wall, rack mount
and continerized ESS types.Commercial projects are more On Grid systems like 50kw, 100kw, 150kw, 200kw, 300kw Grid tied for cement or soil ground
mounting.Industrial projects for tender EPC like 1MW, 2.5MW, 3MW, 5MW, 10MW etc. Usually we have solar panels PERC, bifacial and black types in stock.
F&Q:
1, Introduction of photovoltaic PV
A photovoltaic system employs solar modules, each comprising a number of solar cells, which generate electrical power. PV installations may be ground-mounted, rooftop-mounted, wall-mounted or floating. The mount may be fixed or use a solar tracker to follow the sun across the sky.
2, What's solar panel?
A solar panel is a device that converts sunlight into electricity by using photovoltaic (PV) cells. PV cells are made of materials
that generate electrons when exposed to light. The electrons flow through a circuit and produce direct current (DC) electricity,
which can be used to power various devices or be stored in batteries. Solar panels are also known as solar cell panels, solar electric panels, or PV modules.
3, Do you have Bloomburg Tier 1 solar panels brands available?
Yes, firstly we are using tier 1 solar cells, and we have in stock of many tier 1 brands like TW, JA etc.
4, What types of solar panels you are making now?
Nowadays the most installed types of panels are TOPCON N type, with Bifacial(double face), Monofacial, and black etc; also the cells efficiency is much higher, 182mm and 210mm cells up to 12bb 18bb and 20bb(bus bar) to 700W, 800W power each panel. Other types like PERC, HJT, BC are under production too.
5,How do you pack the solar panels?
Usually we'll pack the pv panels in carton on pallets, standard shipment with 31pieces each package. If you need long time
shipment, wooden box package is ok too.
6, Which types of solar panels do you use for solar system ?
"PERC or N- type Topcon are all available,hot selling items are 410W, 450W, 550W, 620W, 650W and 700w solar panels etc. All are compatible with the whole PV system"
7, How many years warranty? And do you accept OEM/ODM?
We offer 25 to 30years of warranty for the solar panels. And yes, we can do OEM/ODM with your company label design on panels backsheet or cartons.
8, For further information, please leave a message or call us directly ↓↓↓
