ball mill/Dry ball mill/Ball mill for sale
Description

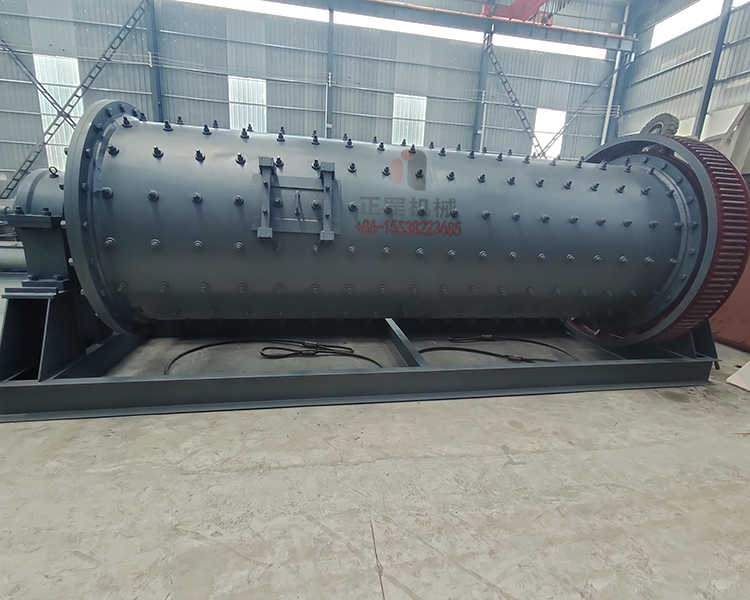

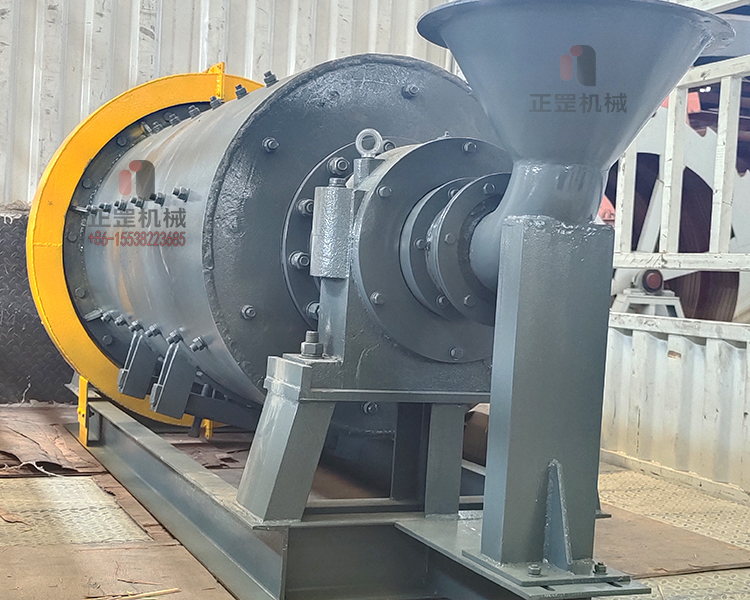

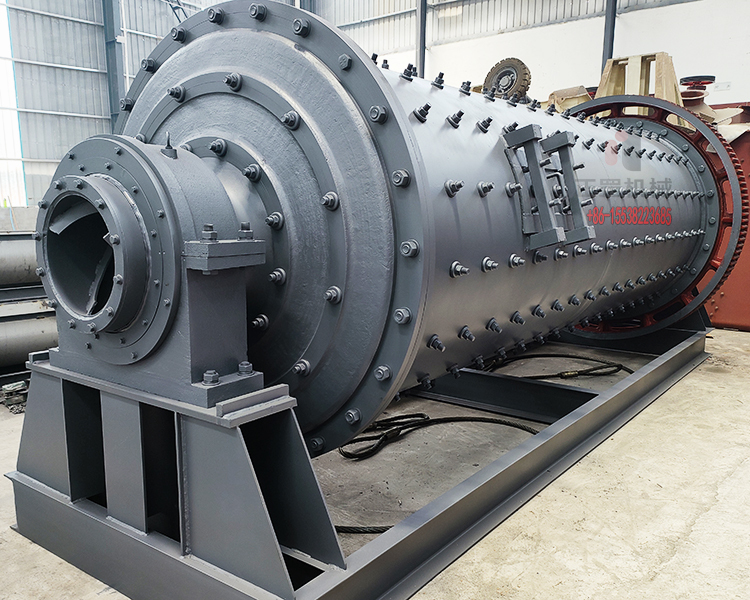

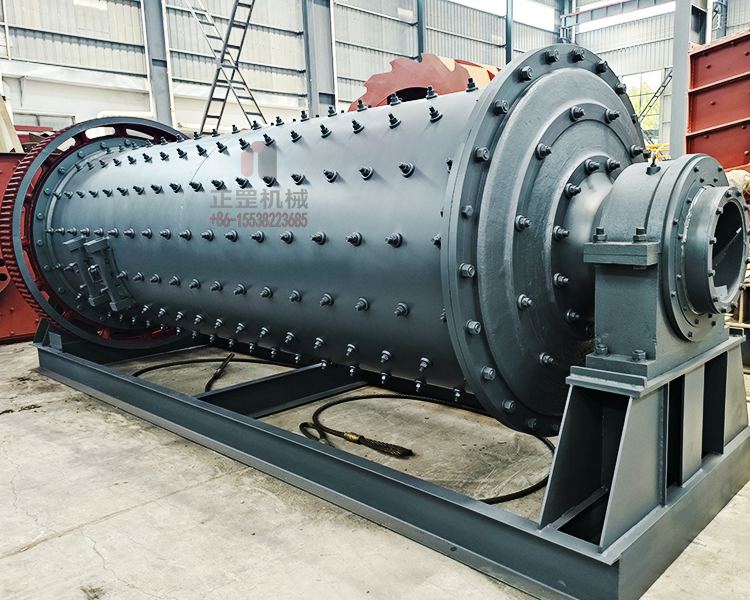

Dry ball mills
Introduction:The ball mill is a key equipment for regrinding. It is widely used for the cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc. Capacity range from 1-130 tph, final product can reach to 500 mesh ! Our ball mill can grind ore or other materials that can be grin
Click for inquiry +86-15538223685 |
Structure and composition
|
Ball mill is mainly composed of feeding, feeding, main bearing, cylinder, transmission department, delivery department and the main motor and other parts.
 |
Performance characteristics
|
1. Save energy: bush bearing is replaced by rolling bearing, friction resistance being greatly lowered down, easy to be started. It’s energy is lower 10-15% than the old one.
2. Large capacity: for the outlet disk and the checked liner are adopted, the capacity is higher 20% than the cone ball mill.
3. The discharging port slurry surface is low, slurry flow through rapidly, decrease ore over-grinding.
4. Load of ball is large, big balls, small balls be loaded in, and small balls can’t be discharged, and can form good working conditions.
|

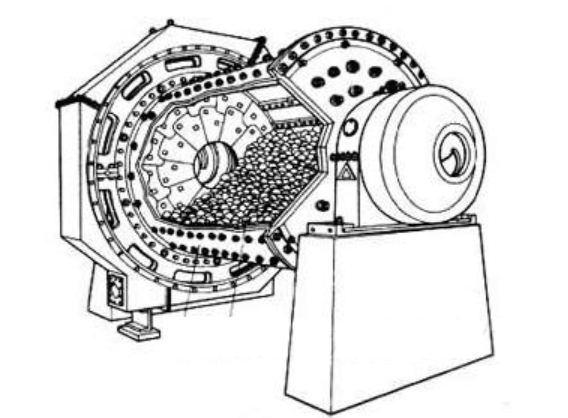

Working principle
| The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished Ball mill grinds material by rotating a cylinder with a steel grinding ball, causing the ball to fall back into the cylinder and onto the material to be grinded. The rotation speed is usually from 4 to 20 revolutions per minute, depending on the diameter of the mill. The larger the diameter, the slower the rotation. If the circular speed of the mill is too high, it will start to act like a centrifuge, and the ball will not fall, but stay around the mill. The point at which a mill becomes a centrifuge is called the "critical speed," and ball mills typically operate at 65 to 75 percent of that critical speed. |
 |
Technical Parameters
| Model |
Cylinder diameter(mm) |
Cylinder length(mm) |
Cylinder RPM(r/min) |
Motor power(kW) |
Effective volume(m3) |
Max ball load (t) |
Capacity(t/h) |
Weight(t) |
| MQG 0918 |
900 |
1800 |
38 |
15 |
0.9 |
1.66 |
0.4-2.0 |
5.28 |
| MQG 1224 |
1200 |
2400 |
32 |
30 |
2.28 |
3.8 |
0.8-3.5 |
9.3 |
| MQG 1530 |
1500 |
3000 |
28.8 |
75 |
5 |
10 |
3.8-12 |
16.9 |
| MQG 1830 |
1800 |
3000 |
24.5 |
185 |
9 |
20 |
4.5-19 |
29.2 |
| MQG 1836 |
1800 |
3600 |
24.5 |
210 |
10.8 |
22 |
5.2-22 |
31.4 |
| MQG 1845 |
1800 |
4500 |
24.5 |
245 |
13.5 |
23.8 |
6.0-25 |
33.6 |
| MQG 2130 |
2100 |
3000 |
23.8 |
185 |
9 |
20 |
5.5-24 |
39.2 |
| MQG 2136 |
2100 |
3600 |
23.8 |
210 |
10.8 |
22 |
6-28 |
41 |
| MQG 2145 |
2100 |
4500 |
23.8 |
245 |
13.5 |
23.8 |
7.2-32 |
45.8 |
| MQG 2430 |
2400 |
3000 |
21.7 |
280 |
12.1 |
23 |
9-39 |
51 |
| MQG 2436 |
2400 |
3600 |
21.7 |
280 |
14.5 |
23 |
10-42 |
52.6 |
| MQG 2445 |
2400 |
4500 |
21.7 |
320 |
18.2 |
23 |
10-45 |
56 |
| MQG 2721 |
2700 |
2100 |
21.4 |
280 |
10.7 |
24 |
10-84 |
63.9 |
| MQG 2736 |
2700 |
3600 |
21.4 |
400 |
18.4 |
32 |
12-95 |
76.8 |
| MQG 2745 |
2700 |
4500 |
21.4 |
450 |
20.5 |
40 |
13-145 |
83.5 |
| MQG 3231 |
3200 |
3100 |
18.6 |
630 |
22.65 |
45 |
20-185 |
107 |
| MQG 3245 |
3200 |
4500 |
18.6 |
630 |
32.8 |
65 |
30-200 |
121 |
| MQG 3254 |
3200 |
5400 |
18.6 |
1000 |
39.2 |
73 |
35-245 |
129 |
| MQG 3645 |
3600 |
4500 |
17.3 |
1000 |
40.8 |
76 |
30-220 |
155 |
| MQG 3650 |
3600 |
5000 |
17.3 |
1250 |
45.4 |
86 |
35--256 |
159 |
| MQG 3660 |
3600 |
6000 |
17.3 |
1250 |
54.5 |
102 |
38-270 |
174 |
|
1. Are you manufacture or trading company? We are factory. 2. How long is your delivery time? 7-10 days for the stock, 15-30 days for the mass production. 3. What is your payment method? 30% deposit in T/T advance, 70% balance before shipment. 4. How long is the warranty? Does your company supply the spare parts? One year. Spare parts for you at lowest cost. 5. If I need the complete crushing plant can you help us to build it? Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.  |
