6-s Shaking table/6-s/ly type shaking table/6-s wash shaking table/6s wash shaking talbe sale
Contact Now
Description

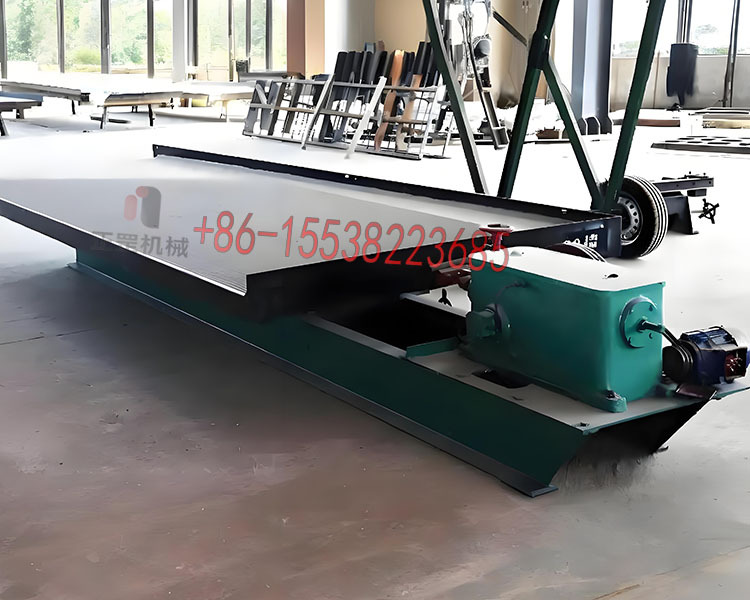

6s wash shaking table
- 【Processing capacity】：1-20
- 【Motor Power】：1.1kw
- 【Application range】：6s Shaking table is effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation of Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum etc.
Shaking table which is also called table concentrator, is a gravity separation device for fine minerals . 6s Shaking table is effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation of Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum etc. Our shaking table can produce mob type, the coarse ore deck is designed for recovering particles size from 0.5 mm to 2 mm; the fine sand deck is designed for recovering fine particles in the range of 0.074 mm to 0.5 mm; the slime deck is designed for recovering super extremely fine particles in the range of 0.037 mm to 0.074 mm.
Equipment introduction
The working principle of Shaking Table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove),to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.
 |
Performance characteristics
| Main Features of Shaking Table: 1.High recovery ratio
2.High concentration ratio
3.Easy installation
4.Simple operation
5.Deck constructed of fiber glass
6.Seven different decks to choose
7.Long working life

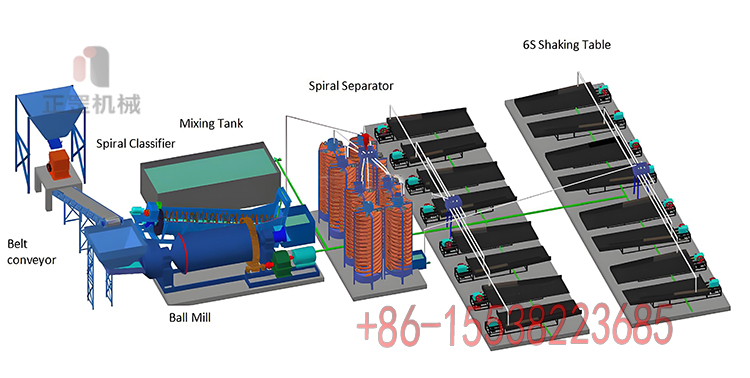

Simple Gold Mill Line
We also can supply the gold processing plant according to your requirements .
 |
working principle
 |
Technical Parameters
| Model |
6-S/LY |
6-S/LY |
6-S/LY |
LY |
|
| Bed size(mm) | 4520x1850x1560 | 3000x1620x1100 | 2100x1050x850 | 1100x500x430 | |
| Bed surface area(㎡） | 7.67 | 4.08 | 2 | 0.51 | |
| Feeding Size(mm) | Coarse sand | 1-2.5 | 0.6-1.5 | 0.4-0.8 | 0.1-0.2 |
| Fine Sand | 0.8-1.2 | 0.3-0.8 | 0.2-0.5 | 0.05-0.1 | |
| Clean water | 0.3-0.6 | 0.2-0.4 | 0.1-0.2 | 0.03-0.05 | |
| Processing capacity(t/h) | 0.5-3.5 | 0.3-1.3 | 0.2-1 | 0.1-0.5 | |
| Stroke | 8-36 | 10-30 | 12-28 | 9-17 | |
| Red times | 240-380 | 240-420 | 250-450 | 280-460 | |
| Lateral inclination(°） | 0`5 | 0`8 | 0`10 | 0`10 | |
| Motor | Power(kW) | 1.1 | 1.1 | 1.1 | 0.55 |
| Speed | 1400 | 1400 | 1400 | 1400 | |
| Triangle section | A-2000 | A-1033 | A-2007 | A-12450 | |
| Dimensions(LxWxH)(mm) | 5630x1850x900 | 4175x1320x780 | 3040x1050x1020 | 1530x500x800 | |
| Weight(kg) | 650 | 550 | 350 | 150 | |
Product Details
FAQ
|
1. Are you manufacture or trading company? We are factory. 2. How long is your delivery time? 7-10 days for the stock, 15-30 days for the mass production. 3. What is your payment method? 30% deposit in T/T advance, 70% balance before shipment. 4. How long is the warranty? Does your company supply the spare parts? One year. Spare parts for you at lowest cost. 5. If I need the complete crushing plant can you help us to build it? Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
|
