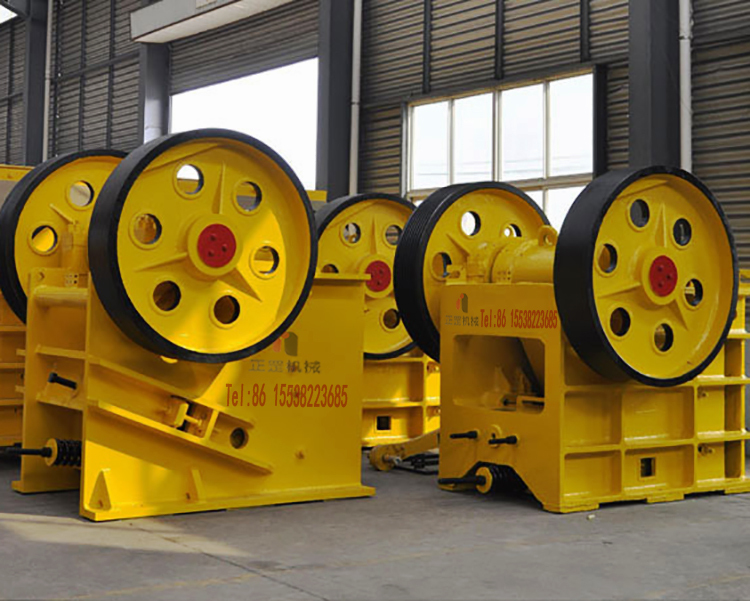

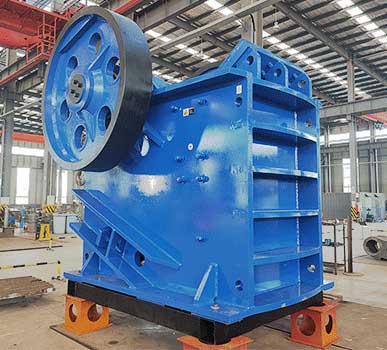

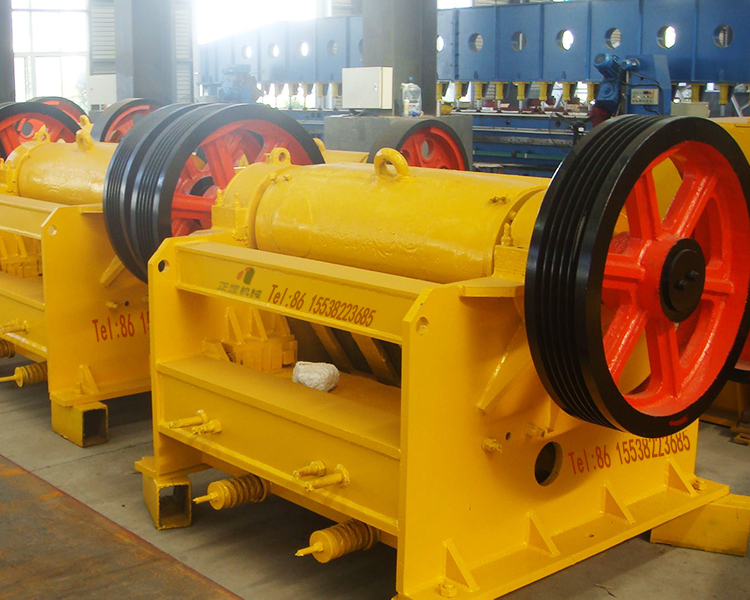

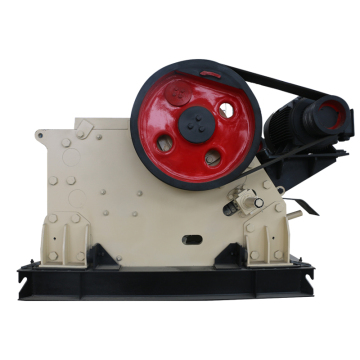

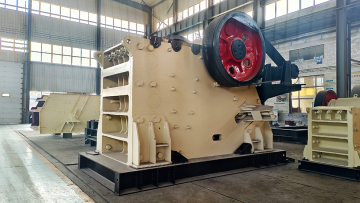

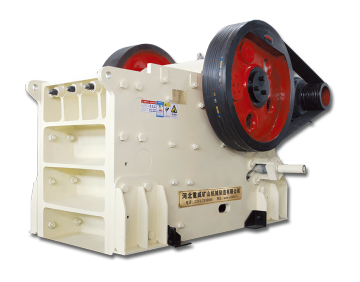

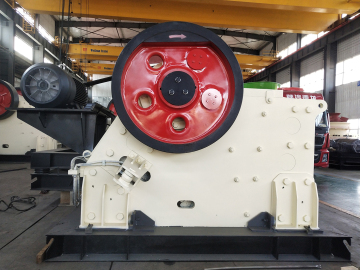

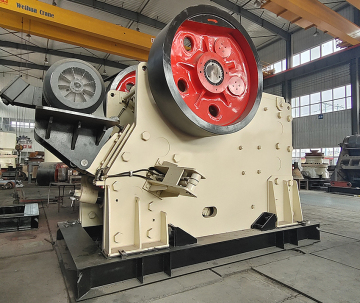

Jaw Crusher

【Feed port size】：150×250-300×1300（mm）
【Processing capacity】：1-90（t/h）

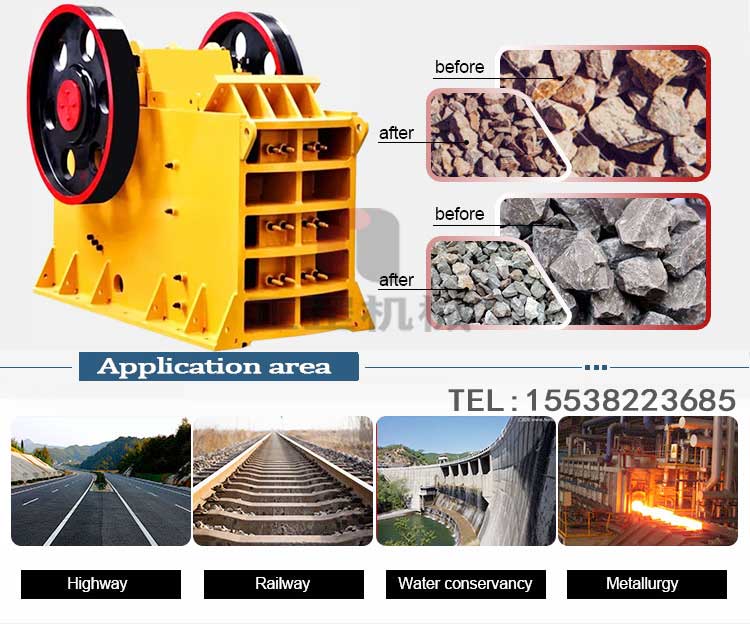

【Application range】：Widely used in mining, metallurgy, building materials, roads, railways, chemicals, refractory materials, ceramics and other industries.

Introduction:Jaw crusher is mainly used to crush hard and medium hard stones in stone mining, metallurgy industry, building material, highway, railway, stone industry, etc. Max. anti-pressure strength of material to be crushed is 320MPa.

Click for inquiry +86-15538223685

Equipment introduction

Jaw crusher is mainly used to crush hard and medium hard stones in stone mining, metallurgy industry, building material, highway, railway, stone industry, etc.
Max. anti-pressure strength of material to be crushed is 320MPa.

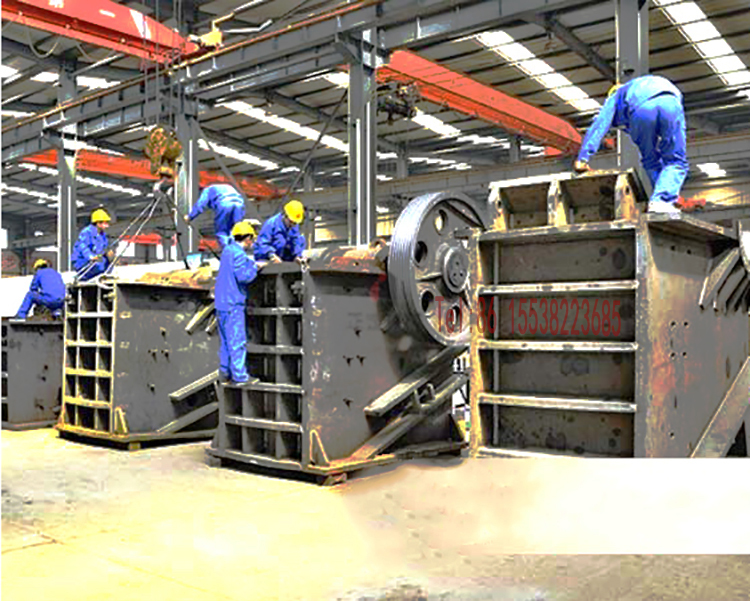

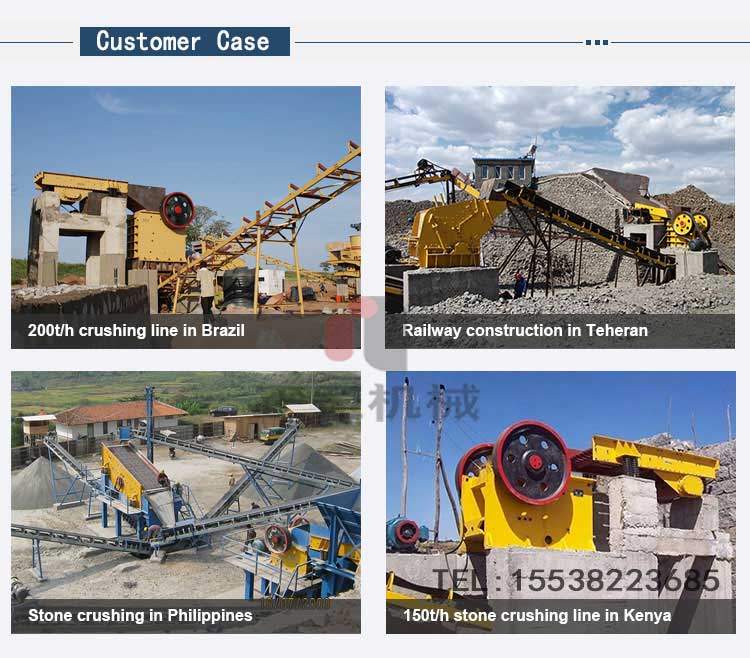

Jaw crusher is a kind of stone crushing machine which is widely used as primary or secondary crusher. We can help you combine a complete crushing line and give you related professional advices as long as you need. We had already build many mining projects in China & Overseas.

Performance characteristics

High ratio of crushing;Simple structure，Reliable working condition;
Easy maintenance， Low operating cost;
Homogeneous final product size;
Discharge size can be adjusted.

working principle

Processing Material:
River Gravel, Granite, Basalt, Quartz Stone, Iron Ore, Diabase, Limestone, Coal Gangue

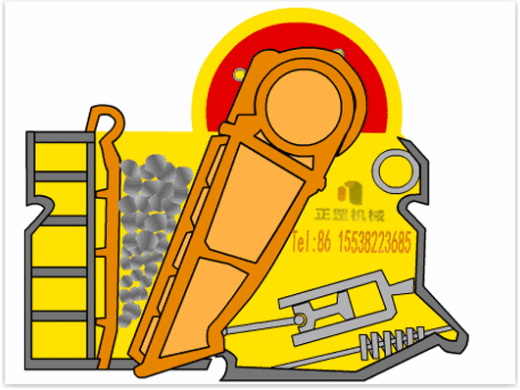

How to Work

The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft.
The angle between toggle plate and moving jaw plate increases when moving jaw moves . So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.

Technical Parameters

Model	Feeding hole size（mm）	Max feeding size（mm）	Discharging hole size（mm）	Capacity（t/h）	Motor Power（kw）	Weight（t）	Dimension（mm）
PE150×250	150×250	125	10-40	1-4	5.5	1.3	896×745×935
PE250×400	400×250	200	20-50	5-20	15	2.8	1108×1090×1392
PE400×600	400×600	340	40-100	10-40	30-37	6.7	1700×1732×1653
PE500×750	500×750	425	50-100	40-110	45-55	10.5	2035×1921×2000
PE600×900	600×900	480	65-160	90-180	55-75	17	2290×2206×2370
PE750×1060	750×1060	630	80-140	110-320	90-110	26	2655×2302×3110
PE900×1200	900×1200	750	95-165	220-450	110-132	48	3135×2966×3220
PE1000×1200	1000×1200	850	200-300	280-560	110-160	52	3480×2876×3330
PE1200×1500	1200×1500	1020	150-300	400-800	160-220	89	4380×3310×4030
PE1500×1800	1500×1800	1200	210-360	520-1100	280	122	5460×3660×4249
PEX100×500	100×500	80	7-20	3-15	7.5	1.5	940×1120×870
PEX150×750	150×750	120	18-48	8-25	15	2.9	1215×1530×1060
PEX250×750	250×750	210	25-60	15-35	22-30	5	1400×1697×1320
PEX250×1000	250×1000	210	25-60	15-50	30-37	6.8	1550×1964×1380
PEX250×1200	250×1200	210	25-60	20-60	37-45	8.5	1720×1900×1950
PEX300×1300	300×1300	250	20-90	30-90	55-75	11.5	1750×2320×1724

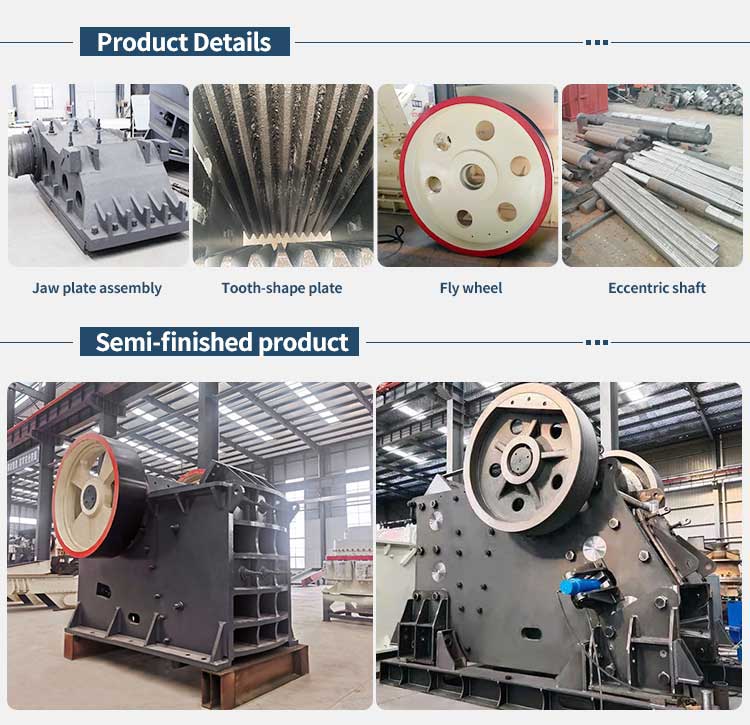

Eccentric shaft adopt 40Cr steel precise forged, Advanced Movable jaw plate assemble made from high quality casting parts, Tooth-shape plate, deep V-chamber, high manganese steel material ZGMn13-4 make crusher more reliable, Precise casting heavy fly wheel,Jaw crusher frame adopt thick Q235B heavy steel plate welding process.Machine blasting, anti-rust painting, surface painting at least three times paintings.

FAQ

Q1: Are you trading company or manufacturer?

A: We are factory.

Q2: How long is your delivery time?

A: Generally it is 7-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q3: What is your payment method?

A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery.

Q4: What Information should customers give us, So that we can be able to provide you suitable quotation and service.

What minerals are you separating?

What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?

Q5: How long is the warrenty of your equipments? Does your company supply the spare parts?
A: The warranty period of crusher equipments is one year. and we will supply the spare parts for you at lowest cost.

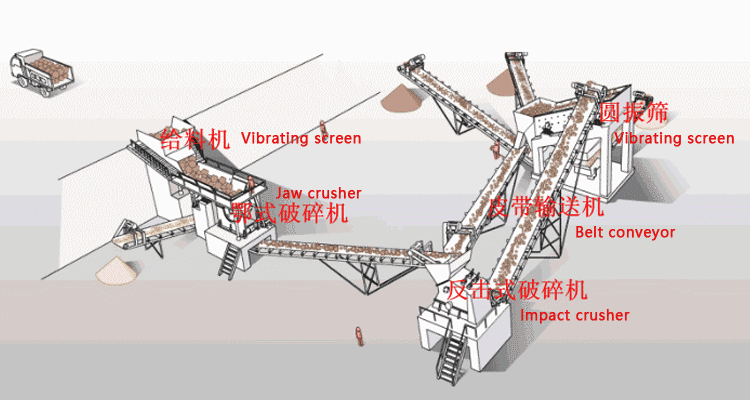

Q6: If I need the complete crushing plant can you help us to build it?

A: Yes, we can help you combine a complete crushing line and give you related professional advices as long as you need. We had already build many mining projects in China & Overseas.

Q7:what's your motor brand?what bearing do you use?

For Motor-China top brand, also can use Siemens as per request .

For Bearing China top brand ZWZ, also can use SKF/NSK etc as per request
