flotation machine/Tin Ore Flotation Machine/pump-action flotation machine/XCF flotation machine
Contact Now
Description

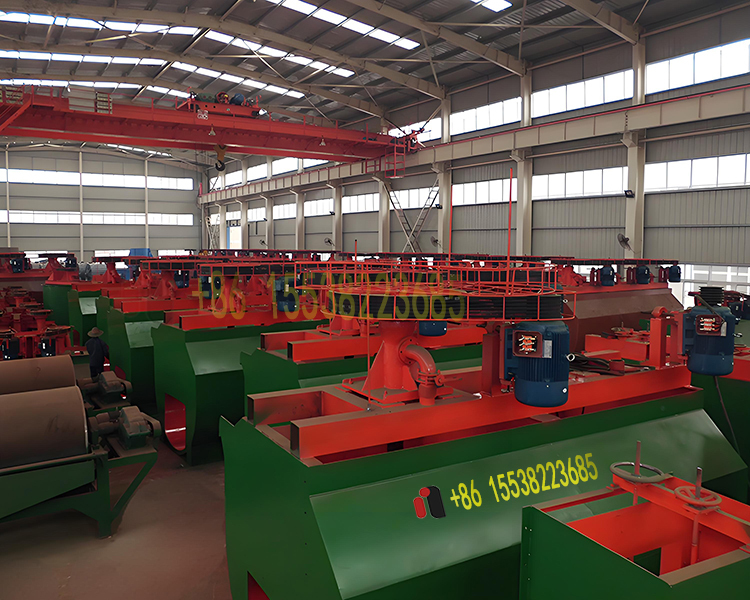

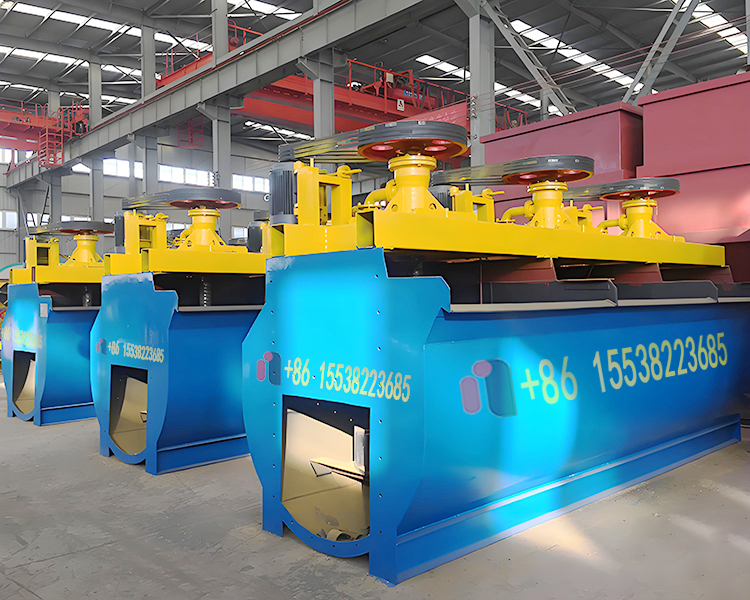

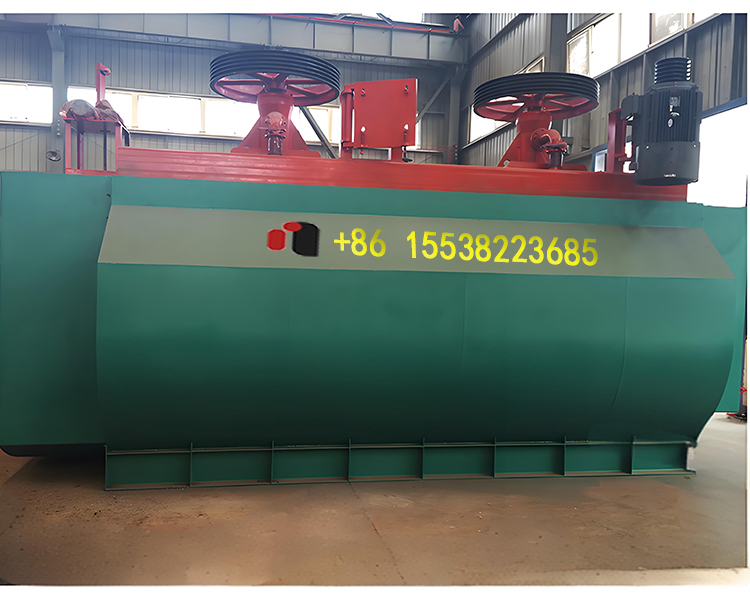

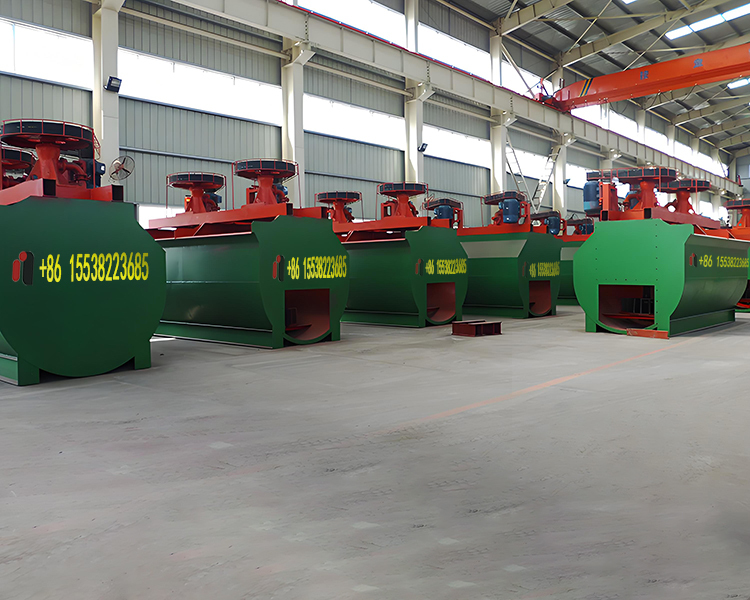

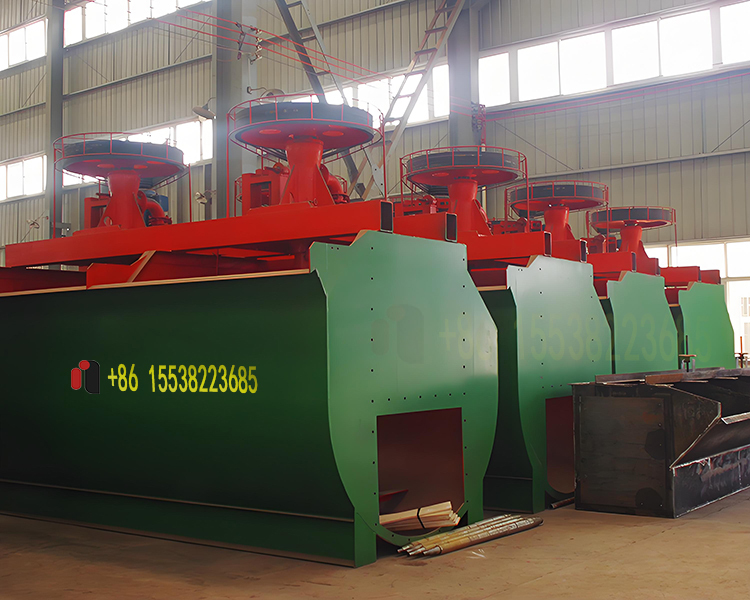

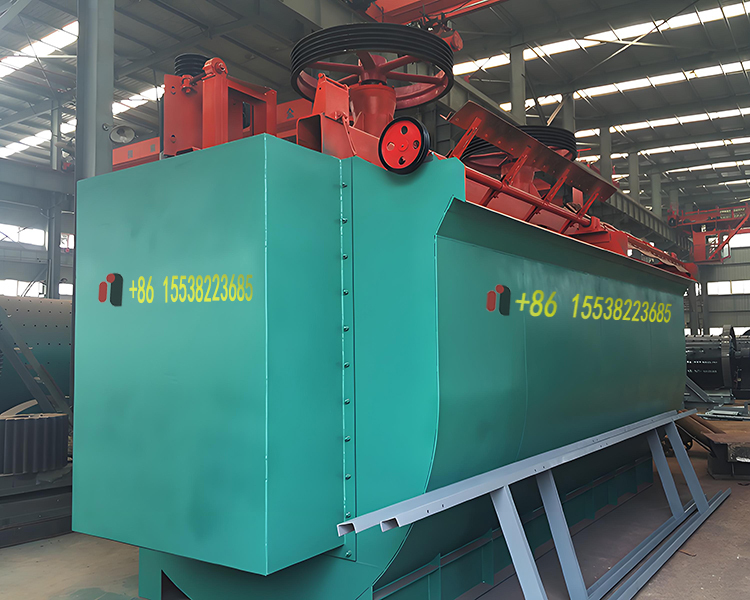

XCF flotation machine
- [Processing Capability]:0.4-2~10-38(m3/min)
- [Motor Power]:Suitable for rough selection and selection of large and medium-sized concentrators.
- [Scope of application]:7.5~45(kw)
The XCF flotation machine is a pneumatic mechanical agitating flotation machine with self-priming slurry function. The main feature is to use the vertical circulation of the slurry and the low-pressure air pressed by the blower to improve the flotation efficiency, as KYF flotation. The suction slot of the machine and the KYF flotation machine flotation machin
Device Description
The XCF flotation machine is a pneumatic mechanical agitating flotation machine with self-priming slurry function. The main feature is to use the vertical circulation of the slurry and the low-pressure air pressed by the blower to improve the flotation efficiency, as KYF flotation. The suction slot of the machine and the KYF flotation machine flotation machine work together. The tank is the same as the KYF flotation machine. The difference is that it adopts an impeller and an open stator that can both recycle the slurry and disperse the air, and can inhale the ore and the medium ore foam from the outside of the tank. The bladeless disc type cover plate and the connecting pipe with exhausting device solve the problem that the general pneumatic mechanical agitating flotation machine enters the impeller cavity due to the low pressure air, which counteracts the negative pressure formed in the impeller cavity due to the impeller rotation and cannot be sucked. The problem of pulp. The main feature of the XCF flotation machine is to increase the flotation efficiency by the vertical large circulation of the slurry and the low pressure air injected by the blower. The optional non-ferrous metals, ferrous metals and non-metallic minerals are available in the range of 0.3-0.01 mm. -0.074mm particle size >50%), with high efficiency, remarkable energy saving, simple structure, convenient installation, stable liquid level, no need for mining, stable and reliable operation, suitable for rough selection of large and medium-sized concentrators Selected assignments.
product structure
The structure of the XCF-type inflatable flotation machine is shown in the figure, consisting of a tank containing slurry, a large isolating disc impeller with upper and lower blades, a seated stator with radial blades, a split disc cover, and a split center. The cylinder, the connecting pipe with the vent hole, the bearing body, and the hollow main shaft and the air regulating valve are composed. The deep groove type groove body has two structures of open type and closed type. The bearing body is seated and side-mounted and mounted on a beam that doubles to the air pipe.
Performance Features
1. The impeller has small diameter, low circumferential speed and low power consumption;
2. With air distributor, the air dispersion effect is good;
3. The impeller has the function of a centrifugal pump to fully suspend solid particles;
4. U-shaped groove body can reduce short circuit cycle;
5. Light wear, low consumption of chemicals and low operating cost;
6. It can be started with load, and the structure is simple and easy to maintain;
7. With slurry level control system, easy operation and management;
8. KYF type has no self-priming slurry capacity and low power; XCF has the self-priming ability of pulp, and the power consumption is slightly higher than KYF;
9. XCF and KYF are often configured as a unit, XCF as a suction tank and KYF as a DC tank. The combined unit can be leveled and does not require a foam pump.
How it works
The XCF flotation machine uses the motor to drive the impeller to rotate through the transmission and the hollow main shaft. The slurry in the tank is sucked into the lower impeller from the periphery of the impeller through the inner edge of the lower impeller by the inner edge of the impeller. At the same time, the low-pressure air supplied from the outside enters the air distribution in the lower impeller through the diaphragm, the air regulating valve and the hollow main shaft. Then, through the small hole around the air distributor, the blade enters between the lower blades of the impeller, and the slurry and air are thoroughly mixed between the blades under the impeller, and then discharged from the outer edge of the lower blade of the impeller. Due to the cooperation of the impeller rotation and the cover plate and the central cylinder, a certain negative pressure is generated in the blade on the impeller, so that the medium mine foam and the ore supply pass through the middle mine pipe and the feed pipe flow into the center cylinder, and enter the impeller blade. Finally, it is discharged from the outer edge of the upper blade. The slurry and air mixture discharged from the outer edge of the impeller blade and the middle ore and the ore discharged from the outer edge of the impeller are stabilized and oriented by the stator installed around the impeller, and then enter the main slurry in the tank, and the mineralized gas bubbles rise to A foam layer is formed on the surface of the slurry, a part of the slurry is returned to the lower blade of the impeller for recycling, and the other part is passed through the flow hole in the groove wall to the next groove for re-selection or discharge as a final product.
Technical parameters
| Model | Effective volume (m3) | Capacity(m3/min) | Impeller diameter(mm) | Impeller RPM(r. p. m) | Blower pressure(kpa) | Max airinflation(m3/m2.min) | Motor power for agitating(kW) | Motor power for scraper(kW) | Tank size(m)（L×W×H） | Weight( t ) |
| XCF-2 |
2 |
0.4-2 |
470 |
331 |
≥14.7 |
2 |
7.5 |
1.1 |
1.30×1.30×1.25 |
1.65 |
| XCF-3 |
3 |
0.6-3 |
540 |
266 |
≥19.8 |
2 |
11 |
1.5 |
1.60×1.60×1.40 |
2.3 |
| XCF-4 |
4 |
1.2-4 |
620 |
215 |
≥19.8 |
2 |
15 |
1.5 |
1.80×1.80×1.50 |
2.7 |
| XCF-8 |
8 |
3.0-8 |
720 |
185 |
≥21.6 |
2 |
22 |
1.5 |
2.20×2.20×1.95 |
4.4 |
| XCF-16 |
16 |
4.0-16 |
860 |
160 |
≥25.5 |
2 |
37 |
1.5 |
2.80×2.80×2.40 |
6.6 |
| XCF-24 |
24 |
4.0-24 |
950 |
153 |
≥30.4 |
2 |
37 |
1.5 |
3.10×3.10×2.90 |
8 |
| XCF-38 |
38 |
10-38 |
1050 |
148 |
≥34.3 |
2 |
45 |
1.5 |
3.80×3.80×3.40 |
11 |
