Wet pan mill
Description
Wet pan mill
- 【Processing capacity】：6-80
- 【Motor Power】：5.5-15kw
- 【Application range】：It is used for wet grinding of gold, silver, lead, zinc, iron, molybdenum, copper, bismuth, quartz and other minerals.
Equipment introduction

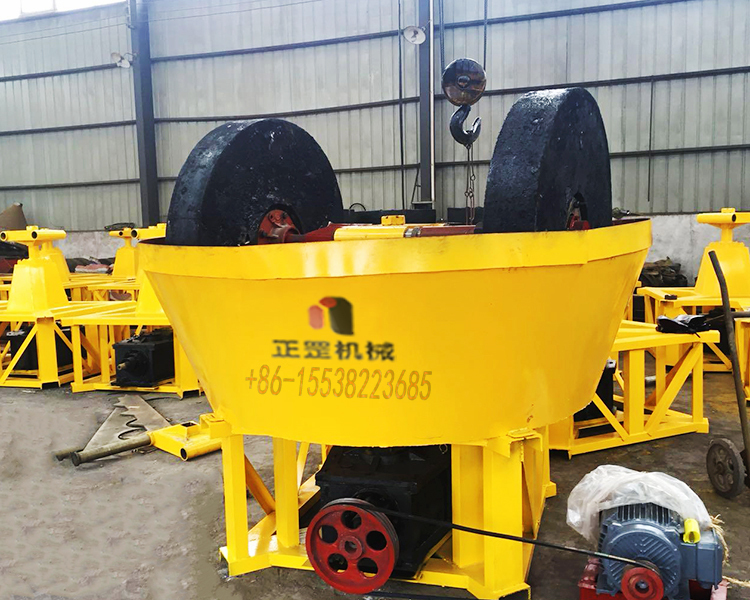

Wet Pan Mill is used for grinding gold ore, especially small rock stone with gold, which can grind into 100-150 mesh. Manycustomers from Africa would like to import wet pan mill because of low cost and high productivity. The most important thingis that our customers can get pure gold directly after wet pan mill, which is suitable for people who want to begin small business. |
Performance characteristics

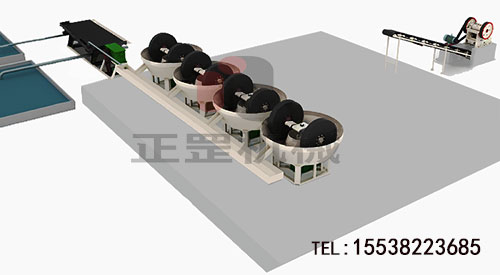

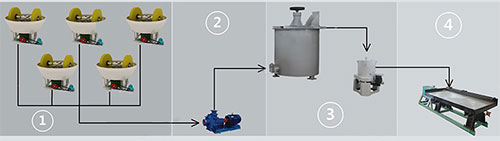

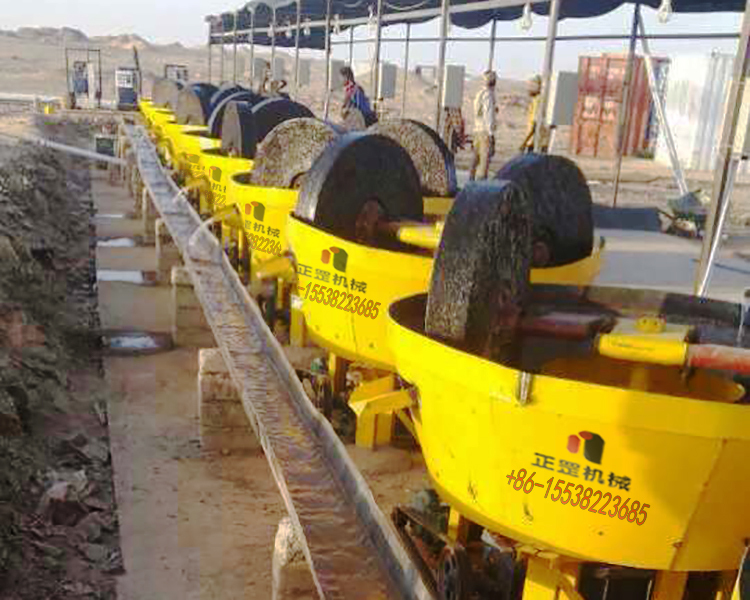

| Main Features of Wet Pan Mill 1. Professionally-designed, thus its technical data is reasonable. 2.Short grinding and mixing cycle, high efficiency. 3.Low noise and low consumption. The materials can be grinded and mixed uniformly. 4.Compact structure, easy to operate and maintenance.  Simple Gold Mill Line
We also can supply the gold processing plant according to your requirements .
 |

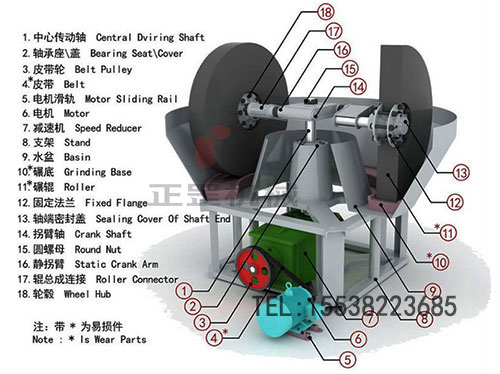

working principle
 |
Technical Parameters
| Model |
Specification(mm) |
Feeding Size(mm) |
Speed(r/min) |
Power(kW) |
Weight (t) |
| 1000 |
1000×200×80×250± 20mm |
＜25 |
13-15 |
5.5 |
4.5 |
| 1100A |
1100×200×80×250± 20mm |
＜25 |
17-19 |
7.5 |
5 |
| 1100B |
1100×200×80×250± 20mm |
＜25 |
23-25 |
7.5 |
5 |
| 1200A |
1200×200×80×250± 20mm |
＜25 |
17-19 |
7.5 |
5.5 |
| 1200B |
1200×200×80×250± 20mm |
＜25 |
23-25 |
7.5 |
5.5 |
| 1300A |
1300×250×150×350± 20mm |
＜25 |
16-18 |
15 |
7.5 |
| 1300B |
1300×250×150×350± 20mm |
＜25 |
21-23 |
15 |
7.5 |
| 1350A |
1350×250×150×350± 20mm |
＜25 |
16-18 |
18.5 |
8 |
| 1350B |
1350×250×150×350± 20mm |
＜25 |
21-23 |
18.5 |
8 |
| 1400A |
1400×250×150×350± 20mm |
＜25 |
16-18 |
18.5 |
8.5 |
| 1400B |
1400×250×150×350± 20mm |
＜25 |
21-23 |
18.5 |
8.5 |
| 1500A |
1500×350×200×460± 20mm |
＜25 |
20-22 |
22 |
13.5 |
| 1500B |
1500×350×150×460± 20mm |
＜25 |
20-22 |
22 |
12.3 |
| 1500C |
1500×300×150×420± 20mm |
＜25 |
20-22 |
22 |
11.3 |
| 1600A |
1600×400×200×500± 20mm |
＜25 |
20-22 |
25 |
14.5 |

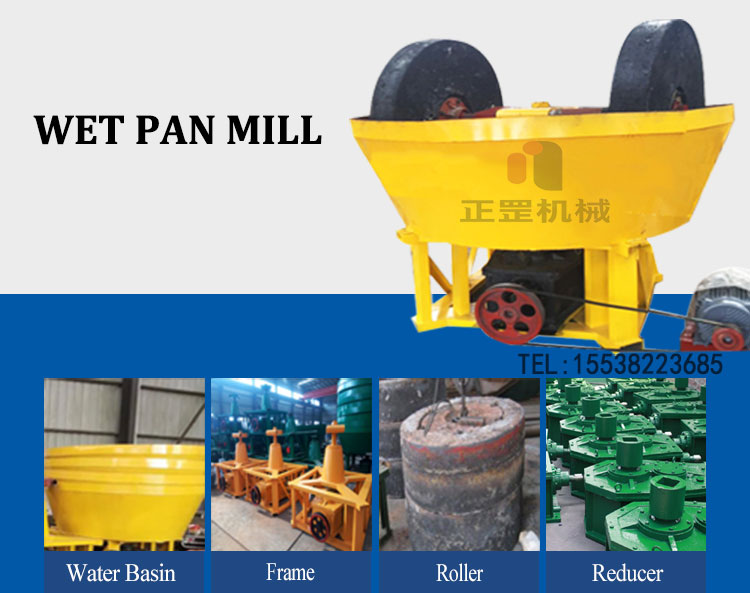

Product Details
|
1. Are you manufacture or trading company? We are factory. 2. How long is your delivery time? 7-10 days for the stock, 15-30 days for the mass production. 3. What is your payment method? 30% deposit in T/T advance, 70% balance before shipment. 4. How long is the warranty? Does your company supply the spare parts? One year. Spare parts for you at lowest cost. 5. If I need the complete crushing plant can you help us to build it? Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
|
