Product ID: 68592200
All in Two Design 100W-120W Solar LED Street Lights (10-12M)
Contact Now
Description
Basic Info.
Model NO.
THOR-T10, THOR-T10
Light Source
LED Lamp
Lamp Body Material
Aluminum Alloy
Light Type
Solar
Color Temperature
Pure White
Power
100W.120W
Technics
Painted Matte
Illumination Time
8h
Cell Type
Lithium Battery
Charging Time (H)
8
Usage
Garden, Street
IP Rating
IP65
Certification
CE, RoHS
Voltage
12/24V
With Light Source
With Light Source
Main Material
Aluminium Die Casting
Brand
Sinoltech
Model No.
T10, T12
LED Power
100W.120W
Solar PV Power
200W.260W
Lithium Battery
25.6V 921wh, 25.6V 1075wh
Remote Control
Yes
Recommended Pole Height
10-12m
Carton Dimension
930*400*220mm (2PCS)
Transport Package
Strong Carton
Specification
100W. 120W LED
Trademark
SINOLTECH
Origin
China
HS Code
9405500000
Production Capacity
China
Product Description

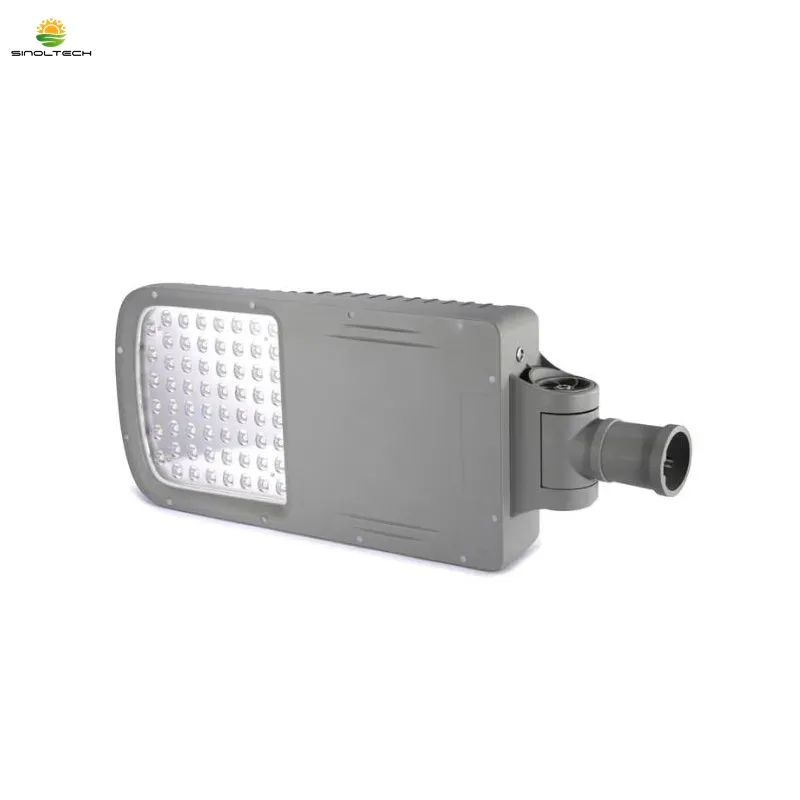

All In Two Design 100W.120W Solar LED Street Lights (10~12M)
All in two smart solar led street light is the most classic model in past years, it adopts LifePO4 battery pack,MPPT charge controller and ultra brightness Luminance LED chip, HELIOS is designed for continuous long time and high brightness output with lighting program 6 hours 100% power and 6 hours 50%. Any solar panel can be plugged in directly with MC4 connects.
Additionally, an advanced wireless intelligent control system is available which makes the solar street lights could be monitored and settable online freely. The state of the solar light system could be recorded in the system and all states including the voltage of the battery, solar panel, and led light power is visible at the online control platform. Customers can modify the lighting power and its lighting programs easily as required. An automatic problem alarm is also available which reduces of step and cost of maintenance work a lot.
Main parts introduction:
LED Source
It adopts ultra high brightness of lumi leds SMD3030 as light source. Each leds is drived by low current, it achieve to more than 150lm per watt. Meanwhile it output less heat which will extend the lifetime of LED chip greatly.
Charge Controller
As the CPU of solar led light, high efficient MPPT solar charge controller are adopted for all lights, it allows 12V/24V 10A , 15A ,20A depending on the power of light.
With high quality and high efficient solar charge controller, it can guarantee sufficient power can be generated with limited solar radiation condition. Lighting program can be modified with remote control easily as customers' demand.
Lithium Battery Pack
Super long lifetime LifePO4 battery are adopted for all model of solar street light. Produced with high requirements of management and production by ISO9001 certified factory, lifePO4 battery is able to provide continues and stable power to system for many years without maintenance.
MC4 Connection
Solar light head is to be connected to solar panel directly with MC4 connectors.
It make the installation simple and durable.
Separated solar panel can be freely adjusted as needed. Customer can select a suitable power of solar panel depending on their local solar radiation at will.
Specification:
Product Detail:
All in two smart solar led street light is the most classic model in past years, it adopts LifePO4 battery pack,MPPT charge controller and ultra brightness Luminance LED chip, HELIOS is designed for continuous long time and high brightness output with lighting program 6 hours 100% power and 6 hours 50%. Any solar panel can be plugged in directly with MC4 connects.
Additionally, an advanced wireless intelligent control system is available which makes the solar street lights could be monitored and settable online freely. The state of the solar light system could be recorded in the system and all states including the voltage of the battery, solar panel, and led light power is visible at the online control platform. Customers can modify the lighting power and its lighting programs easily as required. An automatic problem alarm is also available which reduces of step and cost of maintenance work a lot.
Main parts introduction:
LED Source
It adopts ultra high brightness of lumi leds SMD3030 as light source. Each leds is drived by low current, it achieve to more than 150lm per watt. Meanwhile it output less heat which will extend the lifetime of LED chip greatly.
Charge Controller
As the CPU of solar led light, high efficient MPPT solar charge controller are adopted for all lights, it allows 12V/24V 10A , 15A ,20A depending on the power of light.
With high quality and high efficient solar charge controller, it can guarantee sufficient power can be generated with limited solar radiation condition. Lighting program can be modified with remote control easily as customers' demand.
Lithium Battery Pack
Super long lifetime LifePO4 battery are adopted for all model of solar street light. Produced with high requirements of management and production by ISO9001 certified factory, lifePO4 battery is able to provide continues and stable power to system for many years without maintenance.
MC4 Connection
Solar light head is to be connected to solar panel directly with MC4 connectors.
It make the installation simple and durable.
Separated solar panel can be freely adjusted as needed. Customer can select a suitable power of solar panel depending on their local solar radiation at will.
Specification:
| Model No. | THOR-T10 | THOR-T10 |
| Fixture IP | IP67 | IP67 |
| Materials | Aluminium Die Casting | |
| LED Power | 100W | 120W |
| Luminous Flux | 13800lm | 15800lm |
| Beam angle | 145*83 Degrees | |
| Color Temp. | 3000K/4000K/5000K/6000K Optional | |
| CRI | >81 | |
| Standard Battery Capacity(24h) | 921Wh 25.6V | 1057Wh 25.6V |
| Battery Type | Brand new LifePO4. D.O.D 100% 2000 cycles | |
| Charge Time | 5 Hours | |
| Control System | Programmable MPPT Controller / Hybrid Controller / Wireless Intelligent Control | |
| Control Method | Automatic dusk to dawn / Time Control / Manual ON-OFF | |
| Lighting Modes | 100% Continuous lighting/Energy saving /Customized modes. | |
| Solar Panel | 200W 36V | 260W 36V |
| Post Height(Optional) | 10~12 Meters | 10~12 Meters |
| N.W./Light | 16.20KG | 19.80KG |
| G.W./Light | 17.50KG | 21.50KG |
| Product Size(mm) | 800*310*116mm | |
| Carton Size(mm) | 930*400*220mm (2pcs) | |
| Working Temp. | -20 C~ 75 C | |
| Certificates | CE, ROHS | |
